SKYLINE SL-T26 Table Furniture Testing Machine 5 Air Cylinders PLC Control Strength Stability Tester

SKYLINE SL-T26 Table Furniture Testing Machine 5 Air Cylinders PLC Control Strength Stability Tester

SKYLINE SL-T26 Table Furniture Testing Machine 5 Air Cylinders PLC Control Strength Stability Tester

Brand Name: SKYLINE
Model Number: SL-T26
MOQ: 1 Set
Price: USD 5800-9800 / Set
Payment Terms: T/T, Western Union,
Supply Ability: 10 Sets per Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
SL-T26
Air Cylinders:
5 Groups (1 Vertical + 4 Horizontal), Stroke 500mm
Force Sensors:
2KN X 4 Pcs, 5KN X 1 Pc
Controller:
PLC + Color Touch Screen
Counter:
0-999,999 Times
Air Supply:
7 Kgf/cm2
Power:
1 Phase AC 220V 50Hz 5A
Test Frame:
2.5 X 2.5 X 2 M, 80x80mm Aluminum Profile
Test Standards:
EN 1730:2012, EN 527-3, EN 581-3, BIFMA X5.1, IS5967, EN 1725
Packaging Details:
Export-grade plywood case with foam protection and operation manual
Supply Ability:
10 Sets per Month
Highlight:

SKYLINE SL-T26 furniture testing machine

,

PLC control strength tester

,

5 air cylinders stability tester

Product Description

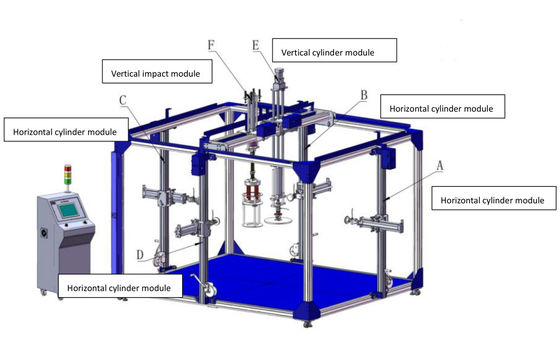

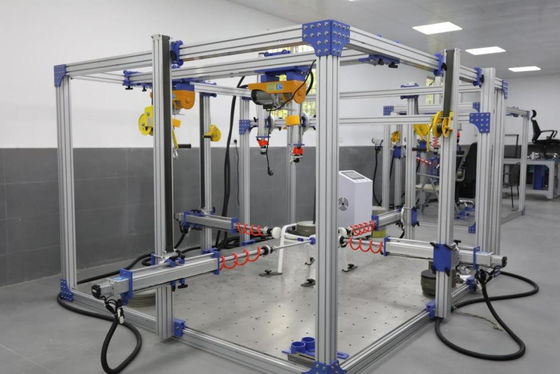

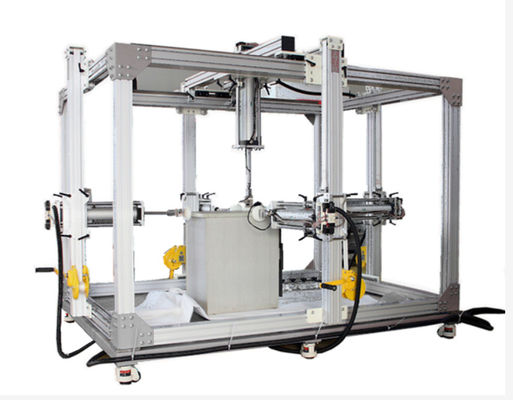

SKYLINE SL-T26 Table Furniture Testing Machine
The SKYLINE SL-T26 Table Furniture Testing Machine is a versatile multi-function tester designed for comprehensive strength and stability testing of tables, desks, and trolleys. Featuring 5 air cylinders and PLC touch screen control, this system delivers high precision force application with exceptional long-term durability at an affordable investment.
Key Features & Benefits
  • High Precision: Equipped with high precision force sensors (2KN x 4 pcs, 5KN x 1 pc) with precision pressure valve and sensor display for accurate force control
  • High Durability: Heavy-duty aluminum test frame (2.5 x 2.5 x 2 m, 80x80mm profile) and industrial pneumatic components rated for continuous operation
  • Cost-Effective Solution: One machine covers vertical static load, sustained load, horizontal static load, vertical impact, vertical stability and horizontal impact tests
  • Easy Operation: Color touch screen + PLC controller with intuitive interface and quick coupling locations for fast accessory changes
Testing Capabilities
Strength Testing: Vertical static load test, Sustained load test, Horizontal static load test, Vertical impact test
Stability Testing: Vertical stability test, Horizontal impact test
Technical Specifications
Air Cylinders 5 groups (1 vertical + 4 horizontal), stroke 500mm
Force Sensors 2KN x 4 pcs, 5KN x 1 pc
Counter 0-999,999 times (adjustable)
Air Supply 7 kgf/cm²
Power 1 Phase AC 220V 50Hz 5A
Test Frame 2.5 x 2.5 x 2 m, 80x80mm aluminum profile
Compliant Test Standards
EN 1730:2012, EN 527-3, EN 581-3, BIFMA X5.1, IS5967, EN 1725
Request a quote now to get the best price and professional technical guidance
