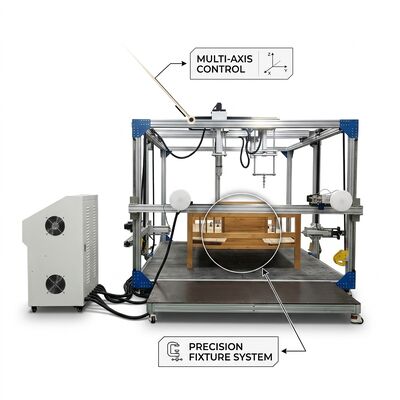

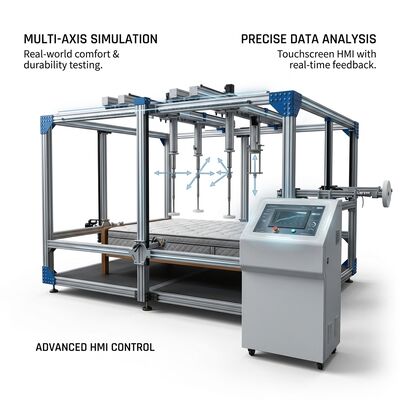

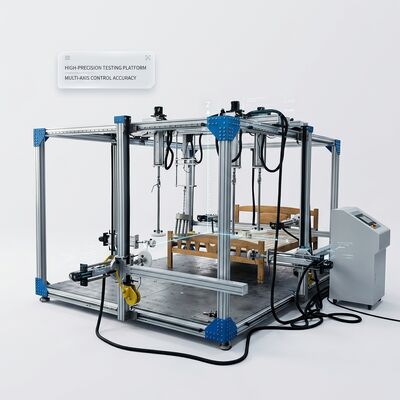

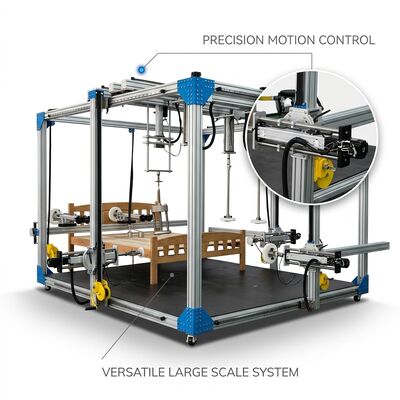

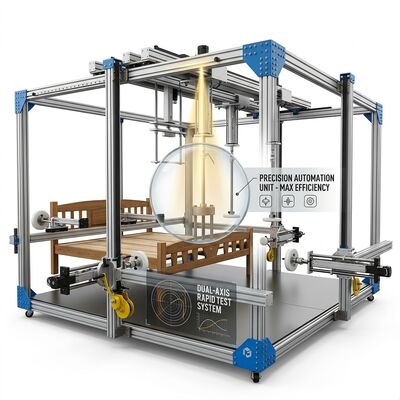

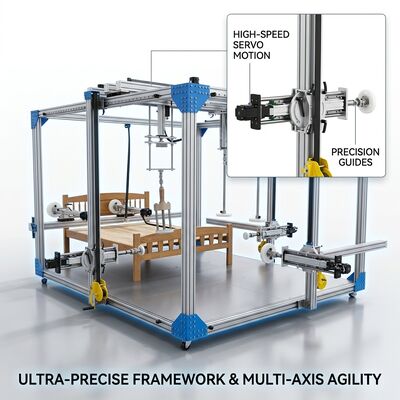

EN 1725 Compliant Furniture Testing Machine with PLC Control and 6 Sets of Air Cylinders

Name: EN 1725 Compliant Furniture Testing Machine with PLC Control and 6 Sets of Air Cylinders
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T26
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-T26

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Highlight:

PLC Control Furniture Testing Machine

6 Sets of Air Cylinders Universal Test Machine

EN 1725 Compliance Universal Test Machine

Product Description

EN 1725 Bed Universal Test Machine

Product Introduction

This machine is designed for static load testing and durability testing of tables, desks, and other furniture. Each pneumatic device can operate independently or in coordination, with adjustable settings to accommodate various test requirements.

Test Standards

EN 12521, BS EN 15372, EN 1730, EN 581-3, EN 1730, EN 1725

Technical Parameters

Parameter	Specification
Basic Test Frame	3.8x3x2m, constructed from 80x80mm aluminum material
Load Air Cylinder	6 sets of 500mm stroke air cylinders (including 4 sets of 50mm diameter horizontal cylinders + 2 sets of 63mm diameter vertical cylinders + 1 set vertical impactor)
Force Sensor	High precision brand sensors 2KN * 6 sets
Control Method	PLC and LCD touch screen
Counter	0~999,999 (adjustable)
Force Adjustment	Precision pressure valve equipment with sensor display
Air Supply	7kgf/cm²
Power Supply	1∮ AC 220V 50Hz 5A

Product Images
