SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine BIFMA X5.1 120000 Cycles 102kg Load

Name: SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine BIFMA X5.1 120000 Cycles 102kg Load
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T03
Price: 5,000.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-T03
MOQ:	1 Set
Price:	USD 3500-6500 / Set
Payment Terms:	T/T, Western Union,
Supply Ability:	10 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate

Model:

SL-T03

Loading Weight:

102 Kg (225 Lb)

Cycle Rate:

5-15 Rotations Per Minute

Test Cycles:

120,000 Times

Counter:

999,999

Actuator:

Piston Diameter 80mm, Stroke 500mm, 2500N

Load Pad:

Diameter 200mm, DIN EN 1335

Load Cell:

5 KN

Warranty:

18 Months

Test Standards:

DIN 4551, EN 1335, NEN 1812, BIFMA X5.1, BIFMA X5.4, BSI/BS 5459, EN 581-2

Packaging Details:

Export-grade plywood case with foam protection and operation manual

Supply Ability:

10 Sets per Month

Highlight:

BIFMA X5.1 office chair tester

swivel durability test machine

fatigue test machine 102kg load

Product Description

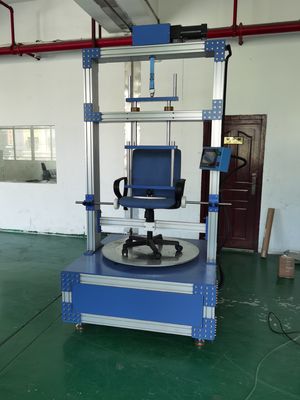

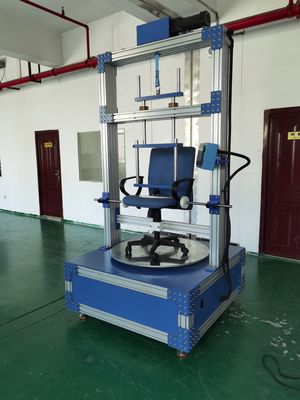

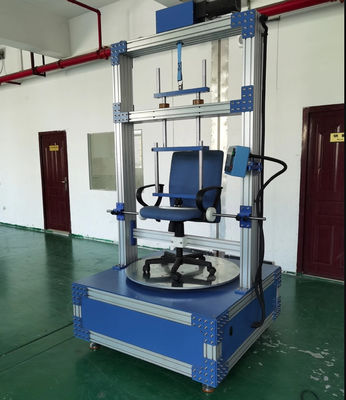

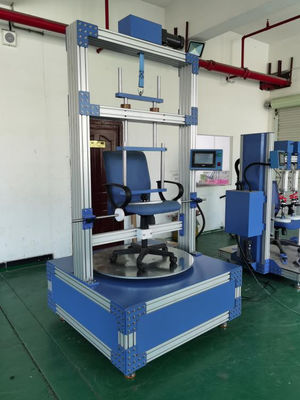

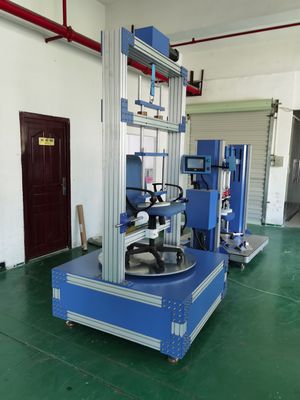

SKYLINE SL-T03 Swivel Durability Tester Office Chair Fatigue Test Machine

The SKYLINE SL-T03 Swivel Durability Tester is a professional furniture testing instrument designed to evaluate the ability of swivel chairs to withstand stresses and wear caused by repeated swiveling. Built with high quality materials and precision components, it delivers reliable, repeatable test results at a cost-effective price.

Key Features & Benefits

High Precision: Equipped with a 5 kN load cell and load-controlled actuator (piston diameter 80mm, stroke 500mm, 2500N) for accurate force application and measurement
High Durability: Rated for 120,000 test cycles with a 999,999 counter, backed by an 18-month warranty for long-term laboratory service
Cost-Effective Solution: Complete package including test frame, electrically driven swivel test rig, load pad and fixing elements at factory direct pricing
Robust Construction: Heavy-duty steel frame with durable surface treatment, designed for 24/7 continuous operation

Applications

Office chairs with swivel seats
Stools and bar chairs
Gas spring chairs
Complete test procedures or selected individual tests per standards requirements

Technical Specifications

Loading Weight	102 kg (225 lb), adjustable
Cycle Rate	5-15 rotations per minute
Test Cycles	120,000 times
Counter	999,999
Actuator	Piston diameter 80mm, stroke 500mm, 2500N
Load Pad	Diameter 200mm, DIN EN 1335, cardanic clamping connection
Load Cell	5 kN
Control System	PLC + touch panel, each test axis with own controller

Compliant Test Standards

DIN 4551
EN 1335
NEN 1812
BIFMA X5.1
BIFMA X5.4
BSI/BS 5459
EN 581-2
