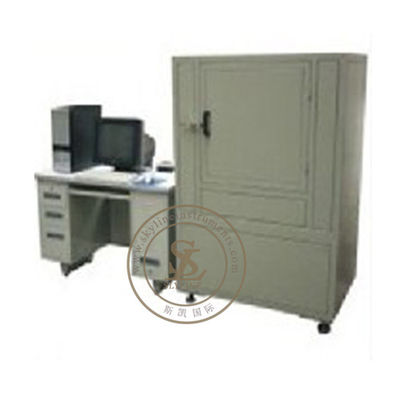

Name: Furniture Fatigue Testing Machine , Chair Base Automatic Compression Testing Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T09
Price: 4,500.00 USD
Availability: InStock

Home Products Furniture Testing Equipment

Furniture Fatigue Testing Machine , Chair Base Automatic Compression Testing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration certificate
Model Number:	SL-T09

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	35 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Chair Base Compression Testing Machine	Loading Weight:	102kg (225lb)
Standard:	BIFMA X5.1 7 Clause	Brand:	SKYLINE
Test Speed:	0-50 Mm / Min	Warranty:	18 Months
Highlight:	furniture testing machine , chair testing machine

BIFMA 5.1 Furniture Testing Equipment Automatic Chair Base Compression Testing Machine

Product information
The test shall be performed on all pedestal bases.
The purpose of this test is to evaluate the ability of a pedestal base to withstand excessive
vertical forces.

The machine used for the vertical pressure testing, destructive testing and fatigue testing use of the office chair Ipomoea base(Star Base) repeated pressure loading in setting force test cycle, as the fatigue test. Pressure on the size of the holding pressuretime and cycle number of tests can be adjusted.

Testing process

A force of 11,120 N (2,500 lbf.) shall be applied for one (1) minute.

Remove the force.

Apply a second force of 11,120 N (2,500 lbf.) for one (1) minute.

Pressure capacity: 30000 N

Force sensor resolution <10000

Test speed: 0-50 mm / min

Interface: Windows XP system, 256M memory, 17-inch color display

Servo motor control, to maintain the feet of the plastic changes have been under the constant pressure type

Breakpoint automatic shutdown

Computerized automation, customers can write their own test program, the computer automatically generates power - time, force displacement curve.

Testing Standard
BIFMA X5.1 7 Clause

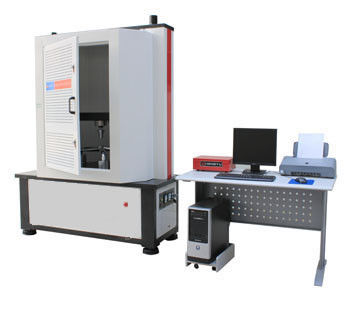

Furniture Fatigue Testing Machine , Chair Base Automatic Compression Testing Machine 0
