Name: Snap Button Pull Test Machine , Button Snap Pull Tester With FB-50k Force Gauge
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-F14B
Price: 4,500.00 USD
Availability: InStock

Home Products Textile Testing Equipment

Snap Button Pull Test Machine , Button Snap Pull Tester With FB-50k Force Gauge

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	Calibration certificate
Model Number:	SL-F14B

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	Carton box
Delivery Time:	2 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	10 unit / month

Contact Now

Detailed Product Description

SKYLINE:	Button Pull Tester	Weight:	38 Kg
Package:	Carton Box (strong Pack)	Dimension:	923737cm
Brand:	SKYLINE	Material:	Stainless Steel
Highlight:	textile lab equipment , textile testing instruments

Snap Button Pull Test Machine , Button Snap Pull Tester With FB-50k Force Gauge

Applications

Snap Button Tester is used to determine the holding or breaking strength of prong ring attached snap fasteners onto garments, prevent the buttons divorce from the clothing,which case the dangerous if babyswallowing the buttons. So that every button and fixed parts on the clothing are required the detectionof the button pull test.

Standards

Complete standard package including Individual Items 1-10.

Specifications

1.Imada mechanical force gauge FB-50K

2.Upper Universal Grip for female part of snap

3.Upper Stud Clamp for male part of snap

4.Lower Fabric Clamp

5.Upper three pronged grip

6.Long Nose Vise Grip

7.Mechanical Stand for Imada Pull Gauge

8.Upper Three Pronged Grip

9.Upper Grasp Button Grip

10.Goggles

Technial parameters

Model	SL-F14B
Load capacity	500N
Load gauge Accuracy	±0.1% of full scale
Readability	1N
Diameter of Pressing ring	15mm 35mm
Instrument Dimension	920370370mm
Weight	38kg
Standard	ASTM PS79-96,ASTM F963 etc

What is button Pull test?

Button pulls test is used to determine the pulling strength of any type of button and snaps used in garments. It is also used to determine the holding or breaking strength of prong ring attached snap fasteners onto garments to ensure the button fixed on the garments product properly.

SL-F14B Snap Button Pull Tester.pdf

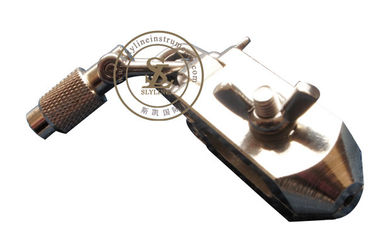

Snap Button Pull Test Machine , Button Snap Pull Tester With FB-50k Force Gauge 0

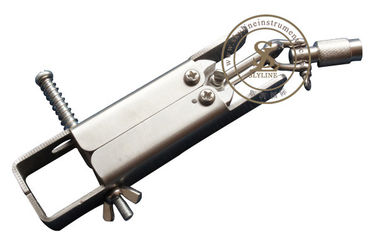

Snap Button Pull Test Machine , Button Snap Pull Tester With FB-50k Force Gauge 1
