(MMT)Moisture Management Tester Dynamic moisture transfer test machine(Old model)

Brand Name:	SKYLINE
Model Number:	SL-M81
MOQ:	1
Price:	negoitable
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

Moisture Management Tester textile equipment

Dynamic moisture transfer test machine

Textile testing equipment with warranty

Product Description

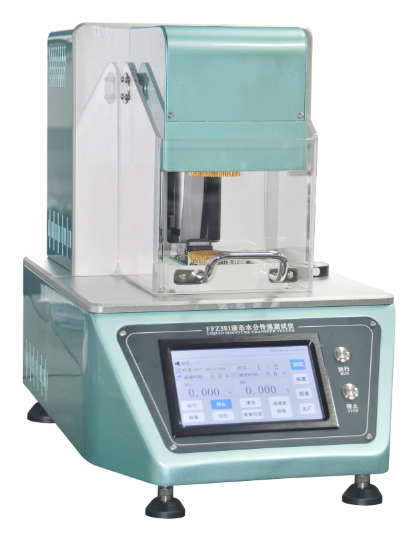

Moisture Management Tester - Dynamic Moisture Transfer Test Machine

Product Overview

This advanced testing instrument evaluates and classifies the dynamic liquid water transfer properties of fabrics. It precisely identifies water resistance, water repellency, and water absorption characteristics based on fabric structure, including geometric and internal composition as well as core-absorption properties of fibers and yarns.

Compliance Standards

AATCC195-2011

Key Features

Dual needle and disk test sensors compatible with both new and old standards
Specimen surface crafted from imported special aluminum profile - lightweight, smooth, and rust-proof
Precision imported motor control device for stable and accurate operation
Advanced droplet injection system with precise dispensing and liquid recycling to prevent pipeline crystallization
High-quality gold-plated probes offering superior sensitivity, oxidation resistance, and stability
Color touch screen display with intuitive menu operation
Integrated FY-Meas & Ctrl measurement and control system with multi-functional test software
High-quality electrostatic spray finish for durability and easy maintenance
Automatic test result rating system (5-level scale from best to worst performance)

Technical Specifications

Parameter Category	Specifications
Test Data Output	Wetting time (immersion/infiltration surfaces), Absorption rates AT/AB, Maximum radius of immersion, Diffusion rates ST/SB, Unidirectional transfer index, Comprehensive dynamic liquid water transfer performance
Test Fluid Delivery System A	Conveying time: (20±0.1)s, Liquid amount: (0.220±0.005)g, Stainless steel tube inner diameter: 0.5mm
Test Fluid Delivery System B	Conveying time: 20s, Liquid amount: 0.2g ± 0.01g, Stainless steel tube inner diameter: 0.5mm
Upper/Lower Sensor A	7 test rings with 5mm/4.5mm spacing, Probe diameters: 1.54mm/1.2mm, Total probes: 4,17,28,39,50,60,72 per ring, Upper sensor mass: 1000g ± 15g, Data acquisition: >10Hz
Test Duration	120 seconds
Operation	One-key start test with automatic motor positioning and return
Droplet Injection	Precise dispensing with reverse pumping system to prevent saline crystallization
Power Requirements	AC220V, 50Hz, 300W
Weight	Approximately 40kg

Standard Configuration

Host computer - One set
Test sensor - One set
Liquid dispensing bottles - Two units
Test liquid - One bottle
Instrument instruction manual
Certificate of conformity

Optional Accessories

Brand computer
Inkjet printer
Cleaning device for needle and disk measurement sensor - One set
