(MMT)Moisture Management Testing Machine(Latest model)

Brand Name:	SKYLINE
Model Number:	SL-M81A
MOQ:	1
Price:	negoitable
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

Moisture Management Testing Machine latest model

Textile Testing Equipment with warranty

MMT moisture testing machine

Product Description

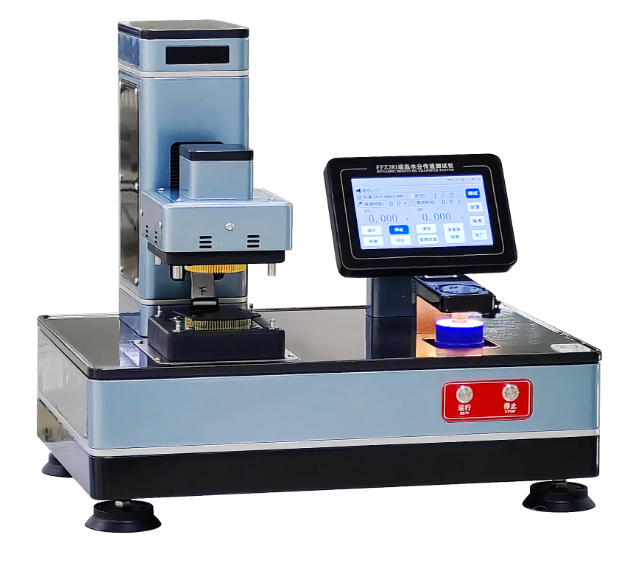

Moisture Management Testing Machine (Latest Model)

This advanced testing machine is designed to evaluate and classify the dynamic transfer of liquid water properties in fabrics. It accurately identifies water resistance, water repellency, and water absorbency based on the fabric's organizational structure, including geometric and internal composition as well as core-absorption characteristics of fibers and yarns.

Compliance Standards

AATCC195-2011

Key Features

Dual needle and disk test sensors compatible with both new and old standards
Specimen surface crafted from imported special aluminum profile - lightweight, smooth, and rust-proof
Precision imported motor control device for stable and accurate operation
Advanced droplet injection system with precise, stable droplet delivery and liquid recycling to prevent pipeline crystallization
High-quality gold-plated probes offering superior sensitivity, oxidation resistance, and stability
Color touch screen display with intuitive menu operation
Integrated FY-Meas & Ctrl measurement and control system including V1.0 multi-functional test software and FY-Meas & Ctrl 2.0 multi-functional measurement and control software
High-quality electrostatic spraying finish for easy cleaning and maintenance
Automatic test result rating system (5-level scale from best to worst performance)

Technical Parameters

Test Data Measurements: Wetting time (immersion/infiltration surfaces), Absorption rate AT/AB, Maximum radius of immersion, Diffusion rate ST/SB, Unidirectional transfer index, Comprehensive performance of dynamic liquid water transfer

Parameter Category	Specifications
Test Fluid Delivery System A	Conveying time: (20±0.1)s Liquid amount: (0.220±0.005)g Outlet: "O" ring on sensor Specifications: Stainless steel tube inner diameter 0.5mm
Test Fluid Delivery System B	Conveying time: 20s Liquid amount: 0.2g ± 0.01g Outlet: "O" ring on sensor Specifications: Stainless steel tube inner diameter 0.5mm
Upper and Lower Sensor A	7 test rings with spacing: 5mm ± 0.05mm (first two rings), 4.5mm ± 0.05mm (others) Test rings composed of probes: upper diameter 1.54mm ± 0.05mm, lower diameter 1.2mm ± 0.02mm Probes per ring: 4, 17, 28, 39, 50, 60, 72 Upper sensor mass: 1000g ± 15g Data acquisition frequency: >10Hz
General Specifications	Test time: 120s Operation: One-key start with automatic motor positioning Droplet injection: Precise system with reverse pumping to prevent crystallization Power: AC220V, 50Hz, 300W Weight: Approximately 40kg

Standard Configuration

Host computer - One set
Test sensor - One set
Liquid dispensing bottle - Two units
Test liquid - One bottle
Instrument instruction manual
Certificate of conformity

Optional Accessories

Brand computer
Inkjet printer
Cleaning device for needle and disk measurement sensor - One set
