Place of Origin: | China |
Brand Name: | SKYLINE |
Certification: | Calibration certificate |
Model Number: | SL-FD03 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negoitable |
Packaging Details: | Carton box |
Delivery Time: | 7 working days |
Payment Terms: | Western Union, MoneyGram, T/T |
Supply Ability: | 10 unit / month |
SKYLINE: | Oscillation Dyeing Machine | Material: | Stainless Steel SUS304 Sheet |
---|---|---|---|
Temperature: | Maximum Temperature Of 100 ℃ | Shake Speed: | 0-200 Cycle /min |
Power: | AC220V, 50HZ | Weight: | 50kg |
High Light: | textile testing machines,textile testing instruments |

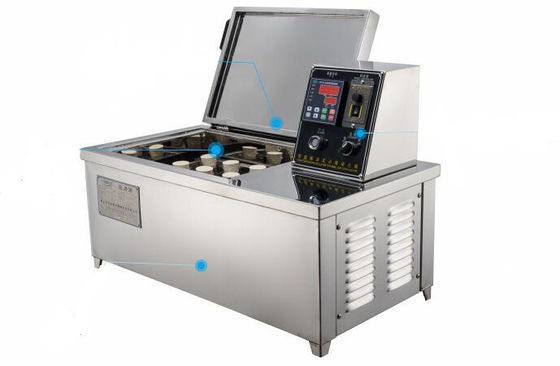

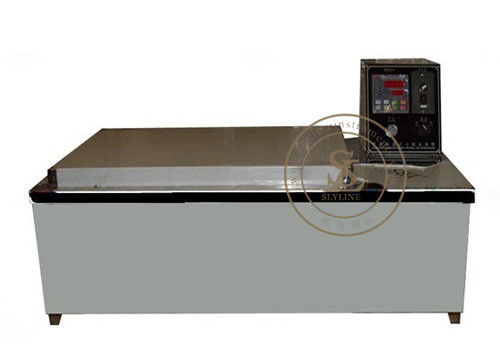

Textile Testing Equipment Constant Temperature Oscillation Dyeing Machine
This machine is ayeing trial machine that is extremely convenient for normal temperature dyeing.Besides,
neutral,alkaki and other additives can be added during the dyeing process.
Certainly,this machine is also applicable for common bath cotton,soap washing and bleaching experiment.
Parameters
1. The whole machine is made of high quality stainless steel 304 sheet.
2. Equipped with precision heating system, PT-100 thermocouple with programmable temperature control computer (with heating rate).
3. Medium for the water, the maximum temperature of 99 ℃. Bath ratio 1: 5-1 ︰ 20.
4. Equipped with Taiwan imported motor and governor. Power AS-12 cup is 40W, AS-24 is 60W.
5. Stainless steel heating tube, power: AS-12 cup for the 3KW, AS-24 for the 6KW.
6. Card cup for the cup or spring structure. 12 or 24 250 ° Glass Triangle Beakers are placed arbitrarily.
7. Also available for 500 triangular beaker, AS-12 can be placed 6, AS-24 can be placed 15.
8. Oscillation speed: 50-200 round trip / min, oscillation distance 36 mm.
9. Power supply specifications: AC220V, 50HZ.
10. 12 cup Dimensions: Front: 880 mm, side: 420 mm, high: 330 mm. Weight is 30 kg
11. 24 cup Dimensions: Front: 1030 mm, side: 560 mm, high: 330 mm. Weight is 50 kg
MAX.TEMP | 100℃ |
Quantity of Cup | 12 |
Heating Model | electrical heating |
Shake speed | 0-200 cycle /min |
Apability of dyeing cup | 250ml |
