Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | Calibration certificate |
| Model Number: | SL-F26 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negoitable |
| Packaging Details: | Carton box |
| Delivery Time: | 7 working days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 10 unit / month |
| SKYLINE: | Digital Fabric Pick Counter | Display Mode: | Thread/10mm And Thread/inch |
|---|---|---|---|
| Measuring Direction: | Vertical/Horizontal | Standards: | GB/T 4668 ISO 7211.2 ASTM D3775 |
| Magnification Of The Camera: | 1×~50× | Specimen: | Woven Fabrics, Knitted Fabrics |
| Highlight: | textile lab equipment,textile testing machines |
||
Textile Testing Equipment Professional Digital Fabric Pick Counter for determine thread density of woven fabrics
Application
Digital Fabric Pick Counter is used to determine the thread density of woven fabrics

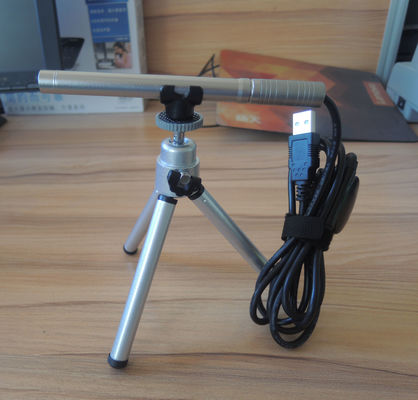

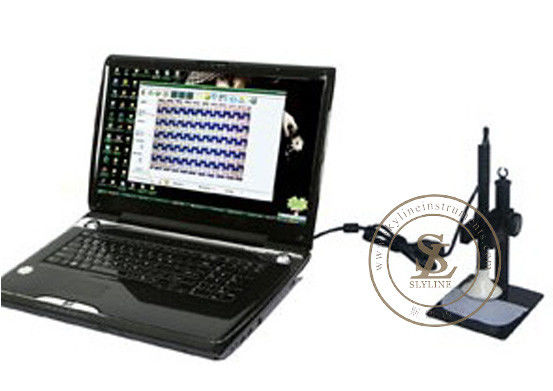

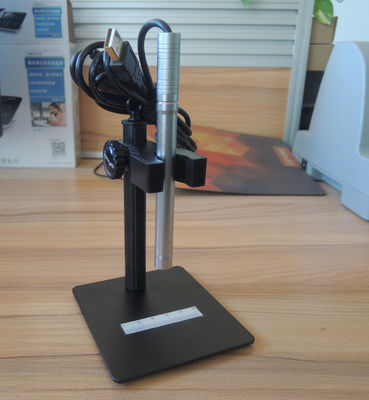

and loop density of knitted fabrics. Equipped with a portable high-precision camera to capture
and magnify pictures of fabrics, the number of threads or loops on captured pictures can be
counted easily on the screen of the computer by the software
Testing Standards
GB/T 4668 ISO 7211.2 ASTM D3775
Features
1.Two language version software, in Chinese or English according to the requirement of customers;
2.The camera is portable and can be connected to the PC by the USB interface;
3.Three measuring methods: “Auto Count”, “Positioning Count” and “Manual Count”; can be applicable for
different colors and patterns fabrics;
4.The measuring software is equipped with the function of memorizing the positioning, so it is convenient for
users to measure the count on different pictures of the same fabric with the same positioning.
5.The color of the measuring lines can be changed according to the color of fabrics in case that error is
caused by the closeness of the color of measuring lines to that of fabrics.
6.The software will automatically display a standard line on the picture to check whether the positioning is
accurate or not after the manual positioning.
Key Specifications
| Magnification of the camera | 1×~50× |
| Specimen | Woven fabrics, knitted fabrics |
| Measuring direction | Vertical/Horizontal |
| Counting direction | Warp-wise/Weft-wise |
| Display mode | Thread/10mm and thread/inch |
| Mode of storing results | In text files |
SL-F26 Digital Fabric Pick Counter.pdf
Contact Person: Ms. Ivy Xie
Tel: 86-13751491529
Fax: 86-769-38818154
