Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-E01 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | plywood case |
| Delivery Time: | 10 workding days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 1 unit / week |
| Skyline: | Contant Temperature And Humidity Testing Chamber | Controller: | LCD Colour Touch Screen |
|---|---|---|---|
| Stability: | ± 2.5% RH. | Temperature: | -40 ℃ ~ 150 ℃ |
| Material: | Inner Box 304# Stainless Steel | Temperature Distribution: | ± 1.0 ℃ |
| High Light: | climatic test chamber,temperature testing equipment |
||

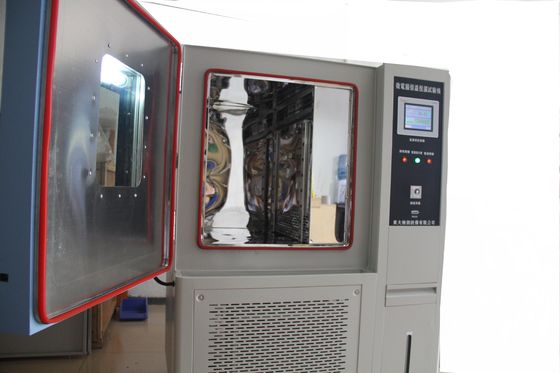

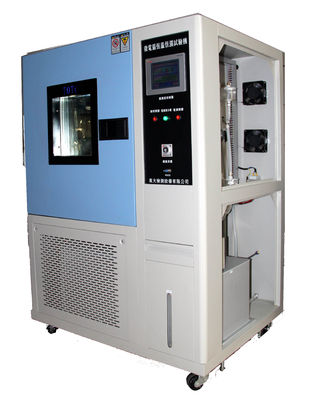

1500L Temperature and Humidity Testing Chamber with 304 Stainless Steel Material
It is used mainly in the testing of electronics, components, pharmaceuticals, boards, quality control and R&D.
Parameters
Performance: (for no-load, the air-cooled at room temperature 25 ℃)
| Temperature range | -40 ℃ ~ 150 ℃ |
| Temperature Control Stability | ± 0.2 ℃ |
| Temperature distribution is | ± 1.0 ℃ (above 80 ℃ and below -40 ℃ the temperature distribution is ± 1.5 ℃) |
| Temperature rise time | room temperature rise to 150 ℃ need 35 minutes |
| Cooling time | |
| Temp range Time needed | 20~ 0℃ About 30 minutes 20~-20℃ About 40 minutes 20~-40℃ Around 50 minutes |
| Humidity | 10% ~ 98% RH. Note: 10% at 60 degrees when the temperature and humidity control can be |
| Stability | ± 2.5% RH |
| Humidity distributions are degrees | ± 3% |
| Temperature and humidity control | (ordinary normal range) |
Special Features of Temperature and humidity climatic testing chamber
Safety device of Temperature and humidity climatic testing chamber
