Name: Easy Operate Textile Testing Instruments , Shiftable Horizontal Lab Padder / Skyline
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL
Price: 4,500.00 USD
Availability: InStock

Home Products Textile Testing Equipment

Easy Operate Textile Testing Instruments , Shiftable Horizontal Lab Padder / Skyline

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negoiated
Packaging Details:	plywood case
Delivery Time:	7 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	10 unit / month

Contact Now

Detailed Product Description

SKYLINE:	Horizontal Lab Padder	Weight:	140kg
Roller Dia:	130mm,with 70 Shore Hardness	Working Speed:	0-10m/min
Roller’s Loading:	0-0.5Mpa	Padding Rate:	25-90%,adjustable
Highlight:	textile testing machines , textile testing instruments

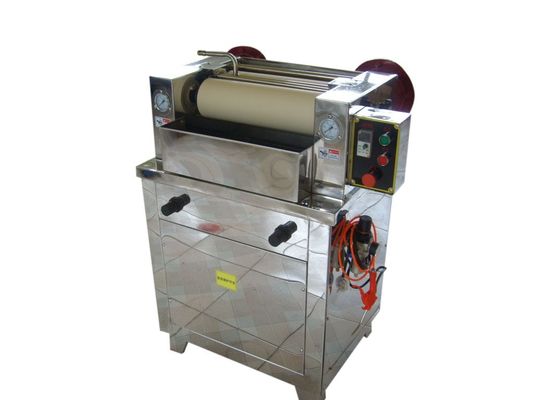

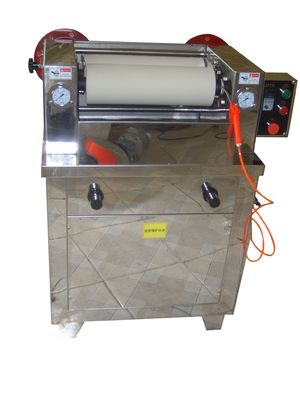

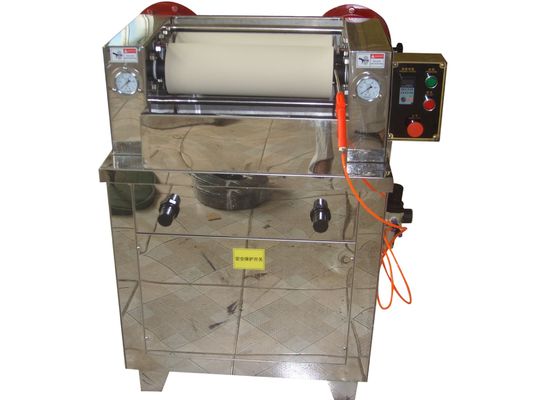

Easy Operate Textile Testing Instruments Shiftable Horizontal Lab Padder

a floor type padding mangle for dyeing, finishing and Impregnating. The unique design combines two positions in one machine, makes the machine can be set in both vertical position and horizontal position, it is easy to operate and set, but also saves a great cost to buy two machines.
This Lab padder is made of quality NBR,good flexibility ensures long-life, main components are imported.The lab padder equipped with emergency button and a knee pedal to stop the machine operation.

Equipped with 2 pressure valve,each side of pressure is adjustable
All panels are made of stainless steel
Equipped with liquor tank

Working width	420mm
Rollers	Dia. 130mm,with 70 shore hardness
Working speed	0-10m/min
Roller’s loading	0-0.5Mpa
Padding rate	25-90%,adjustable
Motor	S7124, 0.37KW, 1400RPM 1
Horizontal	930×650×1140(LxWxH)
Weight	140Kg
