Switch Endurance Tester Push Switch/Rotary Switch/Rocket Swich Life Testing Machine

Switch Endurance Tester Push Switch/Rotary Switch/Rocket Swich Life Testing Machine

Brand Name:	SKYLINE
Model Number:	SL-S98
MOQ:	1
Payment Terms:	Western Union,MoneyGram,T/T,L/C,D/A,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE ISO

Rotation Mode:

Clockwise Rotation, Stepper Motor Precise Positioning

Power Supply:

AC220V / 50Hz

The Number Of Test Materials:

Six Stations

Test Speed:

Button Switch: 5 ~ 60 Times

The Number Of Tests:

1 ~ 999999 Times Can Be Set

Turn-on Time:

0 ~ 999.9 Seconds (minutes) Adjustable

Disconnection Time:

0 ~ 999.9 Seconds (minutes) Adjustable

Rotation Speed:

5 ° ~ 360 ° / S Can Be Set

Rotation Angle:

5 ° ~ 7200 ° Can Be Set

The Number Of Gears:

1 ~ 10 Gears Can Be Set

Packaging Details:

Wooden Case

Highlight:

switch endurance tester machine

push switch life testing equipment

rotary switch durability tester

Product Description

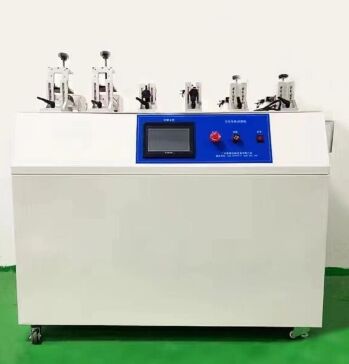

Switch Endurance Testing Machine

AC220V / 50Hz Customized Multi-station Six Stations Switch Endurance Tester designed for comprehensive lifespan testing of push, rotary, and rocker switches with competitive pricing.

Product Overview

This tester complies with GB2099.1, GB17465.1, and GB15092.1 standards for evaluating the lifespan of switch products for household and similar applications. When connected to a load box, it assesses the electrical life of plugs, sockets, couplers, and appliance switches. Essential for quality control and inspection by electrical accessories and home appliance manufacturers.

Construction & Operation

The testing machine utilizes pneumatic cylinders to drive slide assemblies with plug fixtures, creating reciprocating linear movement to complete switch on/off actions. Action frequency and timing are controlled by PLC (programmable controller) and touch screen interface for easy operation and reliable performance.

Technical Specifications

Test Stations	Six stations: Station 1-2 for rotary switches, Station 3-4 for rocker switches, Station 5-6 for push-button switches
Test Speed	Button switch: 5-60 cycles/minute adjustable; Rotary switch: 1-10 cycles/minute adjustable
Test Cycles	1 - 999,999 cycles programmable
Turn-on Time	0 - 999.9 seconds/minutes adjustable
Disconnection Time	0 - 999.9 seconds/minutes adjustable
Rotation Speed	5° - 360°/second programmable
Rotation Angle	5° - 7200° programmable
Number of Gears	1 - 10 gears programmable
Rotation Mode	Clockwise rotation with stepper motor precise positioning
Power Supply	AC220V / 50Hz
Operating Environment	Temperature: 0-40°C, Relative humidity: ≤85%, Stable environment free from vibration and corrosive air

Main Test Sample

Main Control Screen

Rotary Switch Testing (Stations 1-2)

Test cycle counter with programmable limits
Gear time interval settings (0-99.9S)
Test angle programming (5°-360°)
Gear number configuration
Rotation speed control (5°-360°/S)
Real-time operation status indicator
Fault detection with alarm options
Start/stop/clear/alarm release controls
Origin confirmation for sample protection

Rocker & Push Button Testing (Stations 3-6)

Cycle counting with set parameters
Turn-on time programming
Stroke adjustment (0-50mm)
Disconnection time settings
Speed control (0-100mm/S)
Operation status monitoring
Fault identification options
Complete control functions

Operation Procedures

Rotary Switch Installation

Install the rotary switch at initial position, clamp on right fixture, and secure rotary head with specialized handgrip.
