EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing

EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing

EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing

Brand Name: SKYLINE
Model Number: SL-F62
MOQ: 1
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 10 sets/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, CO, Rosh, Form E, Calibrate Certificate...
Packaging Details:
Exported Plywood Package
Supply Ability:
10 sets/month
Highlight:

EN 1149-3 protective clothing tester

,

triboelectric charging decay tester

,

protective clothing lab testing equipment

Product Description
EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing

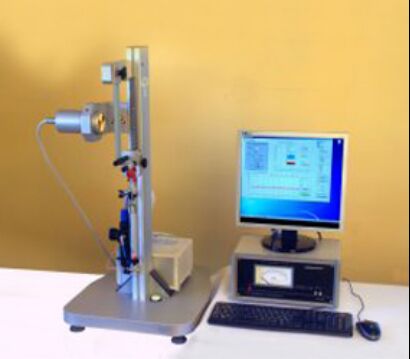

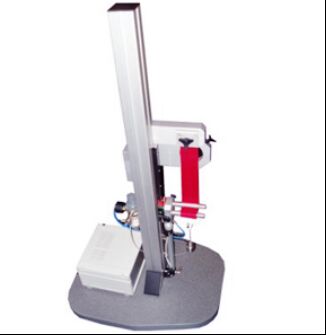

Triboelectric Charging Decay Tester
EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing 0 EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing 1
Introduction

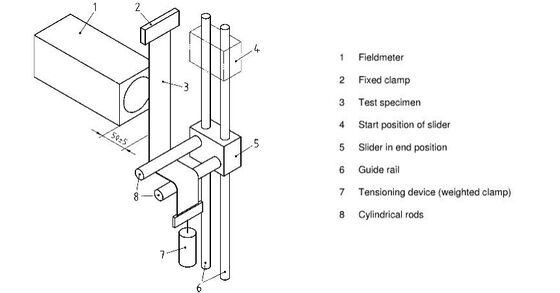

The Triboelectric Charging Tester is professionally designed to determine the charging decay by triboelectric charging method according to EN 1149.3. Test materials are charged by rubbing against cylindrical rods mounted on a vertically running slider. The electrical field strength from the charge generated on the test material is observed and recorded using an electrostatic fieldmeter connected to a graphical recording device.

EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing 2
Test Standard
EN 1149.3
Features
  • Equipped with standard cylindrical rods and slider
  • Built-in tension meter provides precise loading on testing materials
  • PC with evaluation software included
Product Specification
  • Cylindrical rods: Aluminum and HDPE
  • Field meter measuring range: Up to 200kV/m
  • Response time: <1ms
  • Loading pressure: 1.3±0.05N
  • Speed: 0.2±0.02m/s
  • Power supply: 220V 50Hz-60 Hz
  • Dimensions: 350mm×350mm×1070mm
  • Net weight: 25 kg
