Products

Home / Products / Textile Testing Equipment /

Fabric Automatic Stiffness Tester ISO9073-7/ ASTM D1388-1996/ BSEN22313

Name: Fabric Automatic Stiffness Tester ISO9073-7/ ASTM D1388-1996/ BSEN22313
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-F37
Price: 4,500.00 USD
Availability: InStock

Brand Name:	Skyline
Model Number:	SL-F37
MOQ:	1
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram, In Cash
Supply Ability:	30 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, Rosh, Calibration

Measuring Angle:

41°, 30', 43°, 45° Adjustable

Extending Length Range:

0.5cm--20cm

Display Resolution:

0.01cm

Measurement Accuracy:

±1%

Specimen Size:

2.5cm × 20cm

Sample Platen Specification:

2.5cm × 20cm

Pushing Speed Of Sample Platen:

0.3~0.5 Cm/s

Power Supply:

Single Phase 220V 50Hz

Host Volume:

425mm × 250mm × 380mm

Host Weight:

16.5Kg

Packaging Details:

plywood case

Supply Ability:

30 unit / month

Highlight:

Fabric stiffness tester ISO9073-7

Automatic stiffness tester ASTM D1388

Textile stiffness tester BSEN22313

Product Description

Fabric Automatic Stiffness Tester ISO9073-7/ ASTM D1388-1996/ BSEN22313

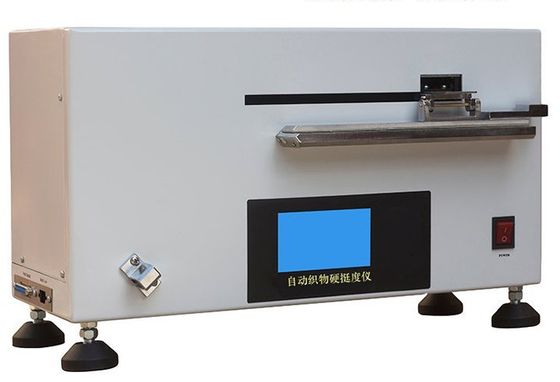

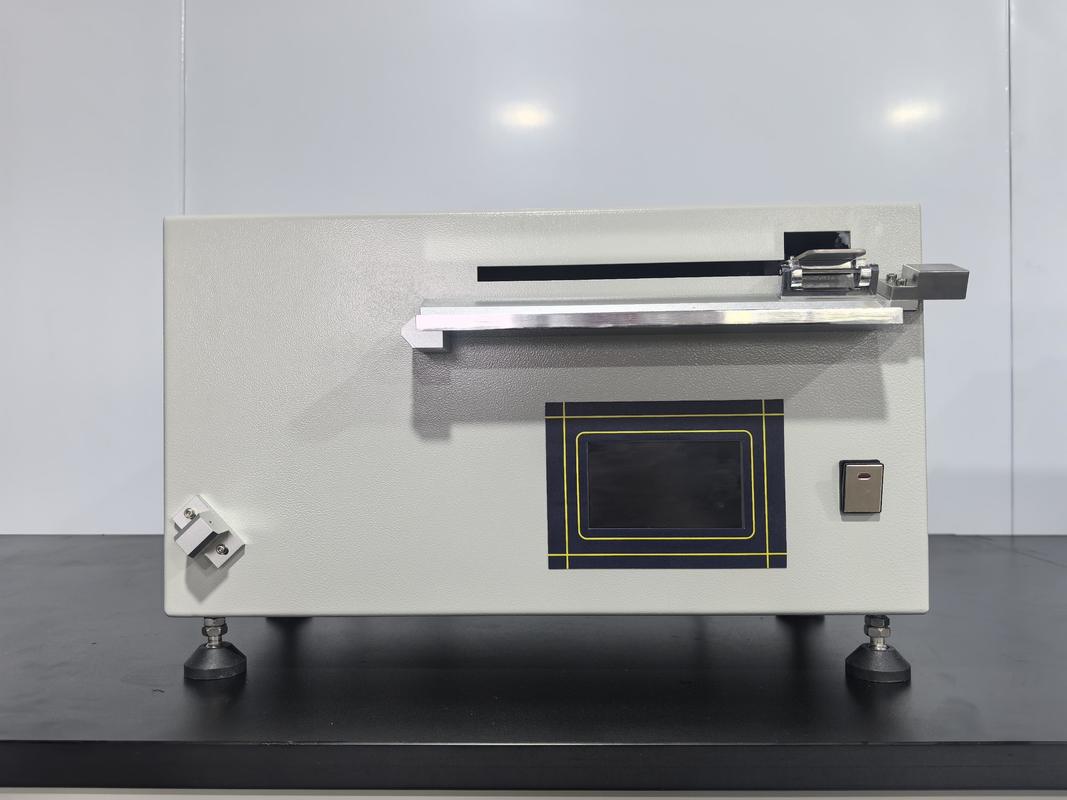

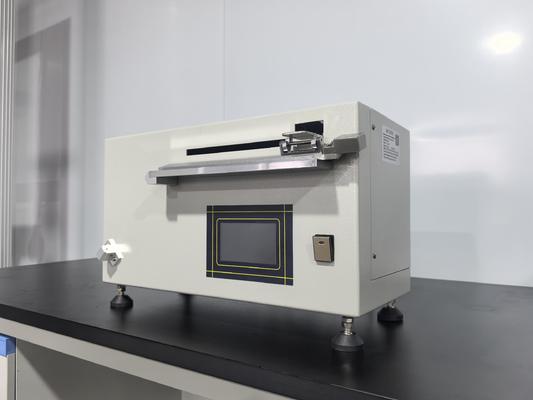

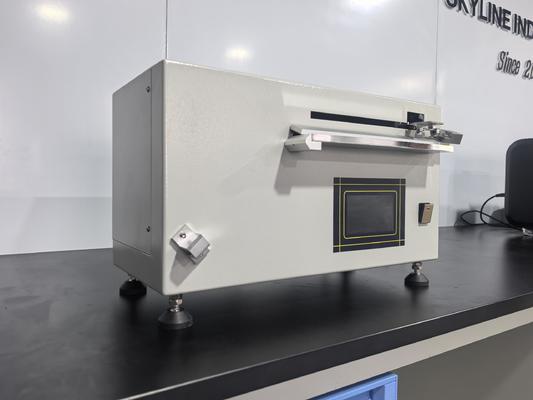

SL-F37 Fabric Automatic Stiffness Tester

Product Information

The bending properties of the fabric are important physical parameters for studying the properties of the fabric such as stiffness, drapability and softness.

The instrument uses two mechanical indexes of bending length (also known as drape stiffness) and bending stiffness (also known as bending stiffness) to express "the ability of the fabric to resist the shape change of its bending direction", collectively referred to as stiffness.

The instrument is suitable for rigid flexural tests of various woven fabrics, knitted fabrics and general non-woven fabrics, coated fabrics, etc., such as cotton, wool, silk, chemical fiber, etc. It is also suitable for flexible materials such as paper, leather and film.

Standards Compliant

This instrument is the national standard ZB W04003-87 "fabric stiffness test method inclined cantilever method" recommended instrument

GBT18318.1-2009
ISO9073-7-1995
ASTM D1388-1996
BSEN22313

Technical Parameters

Parameter	Specification
Measuring angle	41°, 30', 43°, 45° adjustable
Extending length range	0.5cm--20cm (special requirements can be made at the time of order)
Numerical display resolution	0.01cm
Measurement accuracy	±1%
Specimen size	2.5cm × 20cm
Working platform specifications	5cm × 20cm
Sample platen specification	2.5cm × 20cm
Pushing speed of sample platen	0.3~0.5 cm/s
Power supply	single phase 220V 50Hz
Host volume	425mm × 250mm × 380mm
Host weight	16.5Kg

Features

Infrared beam is used to form the "invisible" detection bevel, which replaces the traditional tangible bevel, realizes non-contact detection, and overcomes the problem that the measurement accuracy is affected by the torsion of the sample by the inclined surface.
At the same time, it is possible to adjust the measurement tilt angle
The automatic detection system overcomes the shortcomings of visual inspection and enhances the anti-interference
The sample platen automatic landing device ensures the accuracy and consistency of the platen and sample positioning, and improves the working efficiency
