ISO 5657 Building Materials Ignitability Flammability Tester

ISO 5657 Building Materials Ignitability Flammability Tester

ISO 5657 Building Materials Ignitability Flammability Tester

Brand Name: SKYLINE
Model Number: SL-FL56
Payment Terms: T/T
Supply Ability: 1 unit/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Irradiance:
10Kw/m2 ~ 70kW/m2
Out Put:
50W
Packing Size:
162*100*210
Balance:
Accuracy 0.1g
Resolution:
0.1 KW/m2
Temperature Range:
0℃ ~ 1000℃.
Packaging Details:
Plywood case
Supply Ability:
1 unit/Month
Highlight:

ISO 5657 flammability tester

,

building materials ignitability tester

,

fire testing equipment with warranty

Product Description
ISO 5657 Building Materials Ignitability Flammability Tester
Product Description

SL-FL56 Building Material Ignition Performance Tester

Machine Introduction

This tester evaluates the flammability of materials, composites, or components with thickness ≤70mm under specified thermal radiation conditions. Ideal for assessing:

  • Wall and ceiling lining materials
  • Flooring systems
  • Exterior cladding
  • Thermal insulation materials for air ducts

The test accurately simulates fire scenarios, distinguishing between easily ignitable materials and fire-resistant options to assess real-world fire risks.

Test Standards

Compliant with ISO 5657 international standard.

Machine Features
  • Advanced Control System: PLC programming with computer interface, 16-bit high-precision board for 1% accuracy
  • User-Friendly Interface: Labview-developed software with Windows XP compatibility and intuitive operation
  • Precision Gas System: Propane/air supply with mass flowmeter control for consistent ignition flame
  • Environmental Control: Specialized enclosure maintains air velocity ≤0.2 m/s while safely removing smoke
ISO 5657 Building Materials Ignitability Flammability Tester 0
Technical Specifications
System Components

Complete system includes radiation cone, ignition device, nozzle, pressure plate mechanism, support frame, temperature recorder, gas system, and computer control.

Sample Racks and Pressure Plate
  • Constructed from 1.5mm stainless steel with 25mm * 25mm square steel tubing
  • 220mm side length horizontal guard plate with 150mm diameter opening
  • Adjustable counterweight system maintains constant 20N pressure
  • Collapse prevention mechanism limits upward movement to 5mm

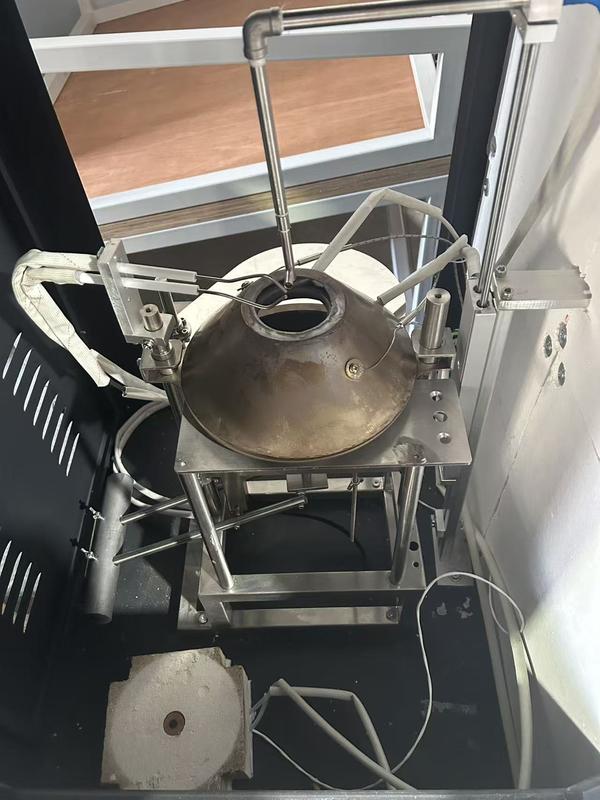

Radiation Cone
  • 3kW rated power with adjustable radiation intensity (10-70kW/㎡)
  • 3500mm * 8.5mm stainless steel heating element in conical configuration
  • Insulated stainless steel shell with ceramic fiber insulation
  • Precision mounting ensures ≤10% opening area obstruction
ISO 5657 Building Materials Ignitability Flammability Tester 1
