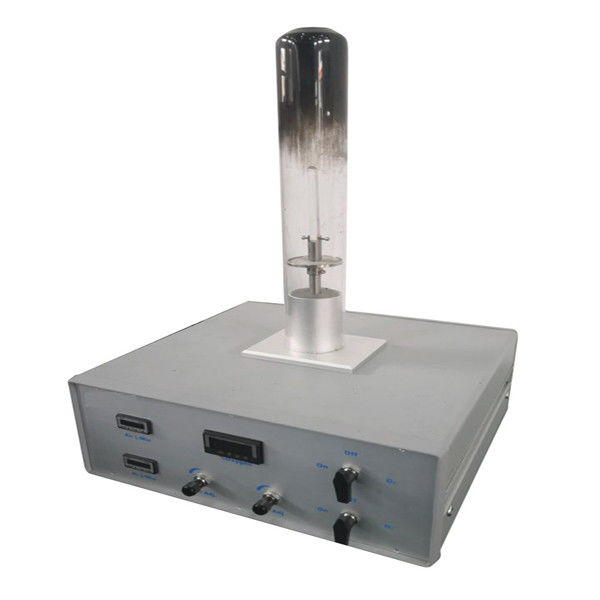

Fire Testing Equipment Oxygen Index Tester Paramagnetic

Fire Testing Equipment Oxygen Index Tester Paramagnetic

  • Fire Testing Equipment Oxygen Index Tester Paramagnetic
  • Fire Testing Equipment Oxygen Index Tester Paramagnetic
  • Fire Testing Equipment Oxygen Index Tester Paramagnetic
  • Fire Testing Equipment Oxygen Index Tester Paramagnetic
Fire Testing Equipment Oxygen Index Tester Paramagnetic
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE
Model Number: SL809P
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: plywood case
Delivery Time: 10 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
SKYLINE: Oxygen Index Tester Standards: ASTM D2863,ISO 4589-2,NES 714
Ambient Temperature: Operating 10°C To 35°C Dimension: 420 Mm (W) X 350 Mm (D) X 560 Mm (H)
Weight: 9kg Electrical: 115 Volts AC 60Hz / 230 Volts AC 50Hz
High Light:

flammability test apparatus

,

flammability testing labs

ASTM, ISO 4589-2 High Reliability Oxygen Index Tester (Paramagnetic)

Product introduction

Oxygen Index Tester measures minimum oxygen concentration as necessary when specimen combustion. This equipments the oxygensensor is adapted Paramagnetic Type which has a precise, long life, less error rate and high reliability. This meets the contents of standards like ASTM, ISO 4589-2, NES and so on.​

Technical Parameters

Size 420 mm (W) x 350 mm (D) x 560 mm (H)
Weight 9KG
Electrical 115 Volts AC 60Hz / 230 Volts AC 50Hz.
Ambient Temperature Operating 10°C to 35°C.
Gas Supplies Oxygen,Nitrogen and Propane
Standards ASTM D2863,ISO 4589-2,NES 714
Applications Buliding Materials,Wire & Cable,Upholstered Furniture,Other

Features

Paramagnetic Oxygen Cell for assessing accurate oxygen (< 0.1%) levels.
Digital display of nitrogen gas flow, total flow ofoxygen and nitrogen.
Digital display of oxygen percentage in atmosphere during test (no calculations needed).
High temperature resistant quartz glass tube, can withstand a higher test temperature.
Gas ignition device, easily adjust the length of the flame.
Sample holders for both rigid and flexible samples supplied.
Shortened gas path for rapid response.
Paramagnetic Oxygen Sensor: Range:0 to 100% Oxygen
Repeatability (typical): ±0.1% Oxygen
Linearity (typical): ±0.1% Oxygen

Oxygen Index Tester.pdf

What is oxygen Index test?

Measuring the Minimum Oxygen Concentration to Support Candle-Like Combustion of Plastics (Oxygen Index) ASTM D2863. Scope: ASTM D2863 is a method to determine the minimum concentration of oxygen in an oxygen/nitrogen mixture that will support a flaming burn in a plastic specimen.
