Respiratory Protective Devices Full Facemasks Equipments Tester

Respiratory Protective Devices Full Facemasks Equipments Tester

  • Respiratory Protective Devices Full Facemasks Equipments Tester
  • Respiratory Protective Devices Full Facemasks Equipments Tester
Respiratory Protective Devices Full Facemasks Equipments Tester
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE
Model Number: SL848
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 1pcs /month
Contact Now
Detailed Product Description
SKYLINE: Full Facemasks Equipments Tester Application: Safety Protection
Dimensions: 1200mm (W) X 700mm (D) X 1,900mm (H) Weight: 176KG
Electrical Requirements: 220V, 10A Gas Requirements: Propane Gas
Standard: CSN EN 136:1998 GB/T 16556:2007
High Light:

flammability test apparatus

,

flammability testing labs

Respiratory Protective Devices Full Facemasks Equipments Tester



Application

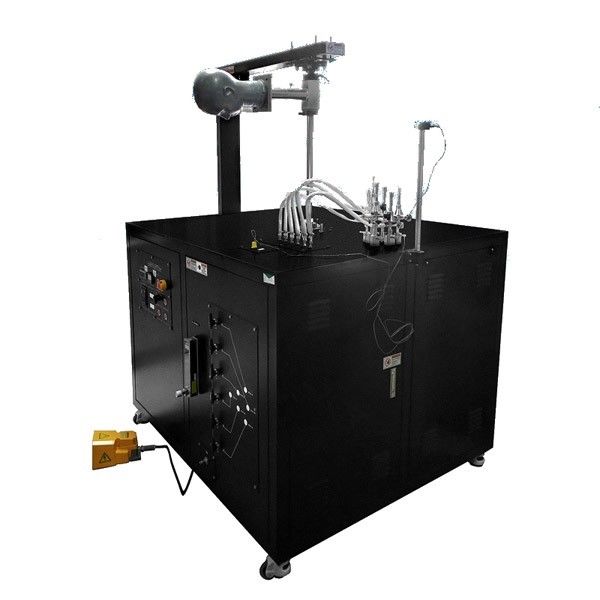

Full Cover Combustion Resistance Tester is suitable for testing the combustion resistance of self-contained open-circuit compressed air respirator (air respirator) in EN136 standard. The combustion performance of air respirator can be tested by means of 6-point burning or single-point burning flame impact.



Performance Characteristics

1. Equipped with the first metal texture simulation device, it can be used for wearing air respirator device.

2. It is equipped with K-type thermocouple, which is placed at 250mm on the top of the highest burner and can detect the temperature of 950 + 50 degrees.

3. Equipped with 6 TEKLU burners, the height of each burner can be adjusted by itself.

4. The gas flow rate supplied to the burner can be adjusted and controlled by a rotor flowmeter.

5. The pressure regulating device can adjust the pressure supplied to the burner to 10-50KPA.

6. Metal texture simulation head can be rotated, and the rotation speed can be adjusted to meet the standard test requirements.

7. Single-point combustion and six-point combustion can be realized, and can be tested according to different standards.



Application: Safety Protection

Standard CSN EN 136:1998 GB/T 16556:2007

Dimensions 1200mm (W) x 700mm (D) x 1,900mm (H)

Weight 176KG

Installation requirements

Electrical requirements: 220V, 10A

Gas requirements: propane gas



How are fire protection products tested?
Many fire tests are run by official laboratories for the purpose of product certification. However, some manufacturers of fire protection products also maintain their own facilities and run tests for R & D purposes before going to the expense and exposure of a test at a third party facility.
