PC Control Model ISO 5657 Flammability Tester with 10Kw/m2 ~ 70kW/m2 Irradiance and 50W Output for Building Materials Ignitability Testing

Name: PC Control Model ISO 5657 Flammability Tester with 10Kw/m2 ~ 70kW/m2 Irradiance and 50W Output for Building Materials Ignitability Testing
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-FL56
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-FL56
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Irradiance:

10Kw/m2 ~ 70kW/m2

Out Put:

50W

Packing Size:

162*100*210

Balance:

Accuracy 0.1g

Resolution:

0.1 KW/m2

Temperature Range:

0℃ ~ 1000℃.

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

10Kw/m2 ~ 70kW/m2 Irradiance Flammability Tester

50W Output Building Materials Ignitability Tester

162100210 Packing Size Fire Testing Equipment

Product Description

PC Control Model ISO 5657 Building Materials Ignitability Flammability Tester

SL-FL56 Building Material Ignition Performance Tester

1. Machine Introduction

This flammability tester is designed for evaluating the ignition performance of building materials with thickness not exceeding 70mm when placed horizontally under specified thermal radiation conditions. It effectively assesses wall and ceiling lining materials, flooring systems, exterior cladding, and thermal insulation materials for air ducts.

The tester accurately simulates specific fire scenarios, providing results that reflect real-world combustion performance. It clearly distinguishes between easily ignitable materials and fire-resistant materials, helping to evaluate material fire risks.

2. Test Standards

ISO 5657

3. Machine Features

Advanced PLC programming with computer control system
High-precision board and module control with PID control technology
16-bit high-precision signal collection and processing (1% accuracy)
Professional Labview-developed software interface with high automation
Comprehensive propane air supply system with precise flow control
Designed testing environment maintains air velocity below 0.2 m/s
Effective smoke exhaust system without affecting test conditions

4. Technical Parameters

4.1 Whole Machine Composition

Includes radiation cone, ignition device, nozzle, pressure plate mechanism, support frame, temperature recorder, gas system, signal acquisition and processing system, and computer.

4.2 Sample Racks and Pressure Plate

Constructed from 1.5mm thick stainless steel
25mm x 25mm square steel tube frame
Total size: 275mm × 230mm
Horizontal protection board: 220mm side length, 4mm thickness
Features vertical guide rods and adjustable pressure system
Includes counterweight system for consistent 20N pressure application

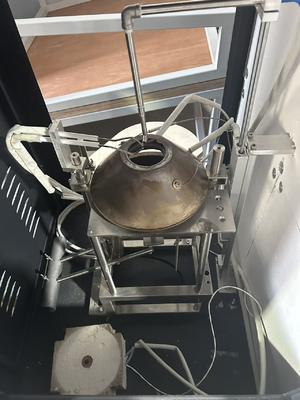

4.3 Radiation Cone

Rated power: 3kW
Radiation intensity range: 10kW/㎡ to 70kW/㎡
3500mm long, 8.5mm diameter stainless steel heating element
Ceramic fiber insulation with 100kg/m² density
Precision heating element positioning with ≤10% opening area obstruction
