Yarn Twist Tester for ASTM D1422/ISO 2061 Maximum Twist Contraction 20mm Test Speed 800r/min

Brand Name:	Skyline
Model Number:	SL-F850
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram, In Cash
Supply Ability:	30 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, Rosh, Calibration

Test Method:

Test Method 1: Single Untwist-retwist Method Test Method 2: Double Untwist-retwist Method Test Method 3: Direct Counting Method Test Method 4: Multiple Untwist-retwist Method

Specimen Length:

25mm,50mm,100mm,250mm,500mm

Rotating Speed Of Grippe:

1500 R/min, 800 R/min, Slow Inching Speed.

Measuring Range:

1 ~ 9999.9 Twist / 10 Cm

Untwisting Elongation Range:

Max. 60mm

Determine Maximum Twist Contraction:

20mm

Test Speed:

800r/min, 1500r/min

Additive Tension:

0.5~160.5cN

Dimension Size:

880x150x175mm

Weight:

16 Kg

Power:

220V,50Hz

Packaging Details:

plywood case

Supply Ability:

30 unit / month

Highlight:

20mm Yarn Twist Tester

ASTM D1422 Yarn Twist Tester

ISO 2061 Yarn Twist Tester

Product Description

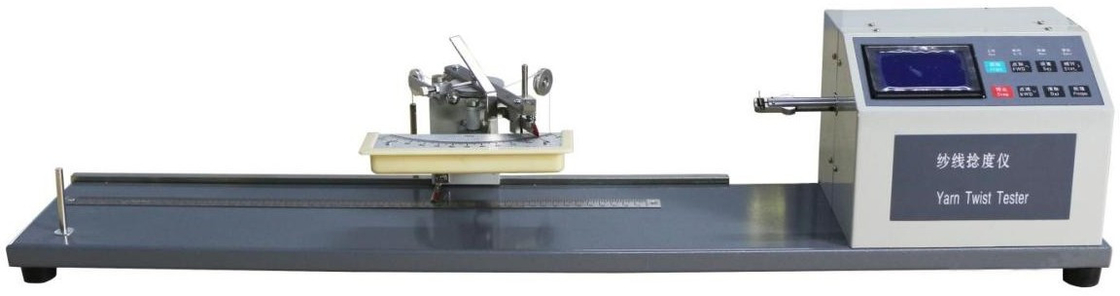

Yarn Twist Tester

Application:

To determine yarn twist in single or plyed yarns, quadrant type with auto stop & reverse for conventional or untwist/retwist methods.

Testing standards:

ASTM D1422 Standard Test Method for Twist in Single Spun Yarns by the Untwist-Retwist Method ASTM D1423 Standard Test Method for Twist in Yarns by Direct-Counting

ISO 2061 Textiles -- Determination of twist in yarns -- Direct counting method

BS 2085 Method of test for determination of twist in yarns, direct counting method

DIN 53832 Testing of textiles -- Determination of the twist of single and plied yarns and of the change of length. untwist method

Technical Parameters

Test method	Test method 1: Single untwist-retwist method Test method 2: Double untwist-retwist method Test method 3: Direct counting method Test method 4: Multiple untwist-retwist method
Specimen length	25mm,50mm,100mm,250mm,500mm
Rotating speed of grippe	1500 r/min, 800 r/min, slow inching speed.
Measuring range	1 ~ 9999.9 twist / 10 cm
Untwisting elongation range	Max. 60mm
Determine maximum twist contraction	20mm
Test speed		800r/min, 1500r/min
Additive tension	0.5~160.5cN
Dimension size	880x150x175mm
Weight	16kg
Power	220V,50Hz
