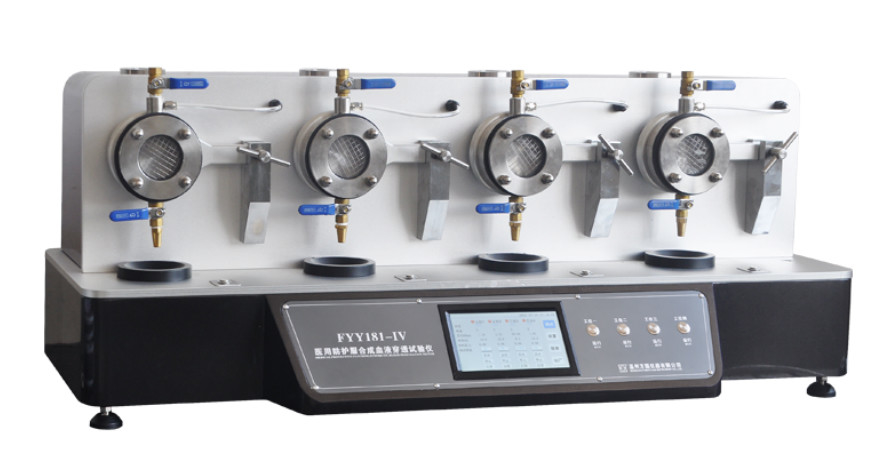

Anti-synthetic Blood Penetration Tester ISO 16603:2004 / ASTM F1670 / ASTM F1671

Anti-synthetic Blood Penetration Tester

Introduction

It is suitable for testing the resistance of protective clothing to synthetic blood penetration at different levels of test pressure.

Work Principle

Test the protective clothing material with synthetic blood under constant pressure and visually check the penetration of synthetic blood on the material.

Technical Parameters

1. Test station: 4

2. Measured pressure points: 0kPa, 1.75kPa, 3.5kPa, 7kPa, 14kPa, 20kPa

3. Pressure mode: (0.5~30) kPa, automatic adjustment

4. Timing range: 0-99999 seconds

5. Accuracy for time control: ≤01 seconds;

6. Sample size: 75×75mm

7. Under pressure area: 28.26cm²

8. Hysteresis net: 304 stainless steel, open space ≥50%, bending ≤5mm at 30kPa

9. Clamp torque: 13.5N.M

10. Air source: ≥0.4kg/cm²;

11. Working power supply: AC220V, 50Hz

12. Machine weight: 80Kg

13. Machine size: 920×500×680mm

Standards

ISO 16603:2004,ASTM F1670,ASTM F1671, YY/T0700, GB19082

Features

1. The instrument uses an air source that can provide (0.5 ~ 30±0.1) kPa air pressure to pressurize the sample continuously, which is not limited by the space of the test site;

2. The air pressure range can be freely adjusted, the adjustment range (0.5 ~ 30) kPa (optional);

3. Color touch screen display, operation; Distribution and control system, including: (1) Hardware: multifunctional circuit board for measurement and control; (2) Software: ①multifunctional test software; ②multi-function measurement and control software.

4. The sample clamping plate is processed with imported special aluminum profiles, the material is light, the surface is smooth, and never rust;

5. The instrument adopts imported special aluminum brushed panel, equipped with metal keys, sensitive operation, not easy to damage;

6. Instrument sample clamping device, equipped with locking protection to prevent synthetic blood spatter around;

7. Clamping force is accurate and reliable, with special tools;

8. The test tank is equipped with a special placing device, convenient for customer operation;

9. The test tank is made of 316 stainless steel, and the top is equipped with a special cover for high transparent protection;

10. The gasket under the sample is made of high quality PTFE material through special processing;

11. Square metal blocking net: open space ≥50%; Bending ≤5mm at 30kPa;

12. Instrument time control accuracy ≤01 seconds;

13. The shell of the whole instrument is treated by spraying plastic process, which is beautiful and generous;

14. Equipped with printer interface, connected to the printer can directly print data reports.

Configuration list

1. Host machine *1;

2. PTFE gaskets *8;

3.Ordinary gaskets *8;

4. Metal blocking nets *4;

5. Special locking tools *1;

6. With printer interface;

7. Sample template *1;

8. Product manual *1;
