AATCC 66 Fabric Digital Crease-Recovery Tester/ ISO 2313 Textile Crease-Recovery Test Equipment

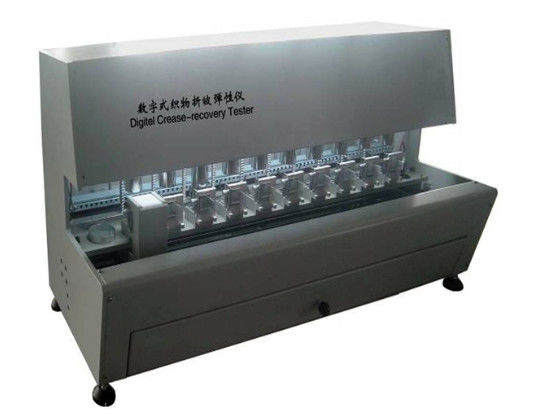

SL-F57 Digital Crease-Recovery Tester

Product information

The scope of application determines the performance of various textile fabrics when folded and pressurized under specified conditions, and after pressure relief, the fabric can be restored to the original state to a certain extent.

Standards

GB/T3819, ISO2313, AATCC66, M&S...

Technical Parameters

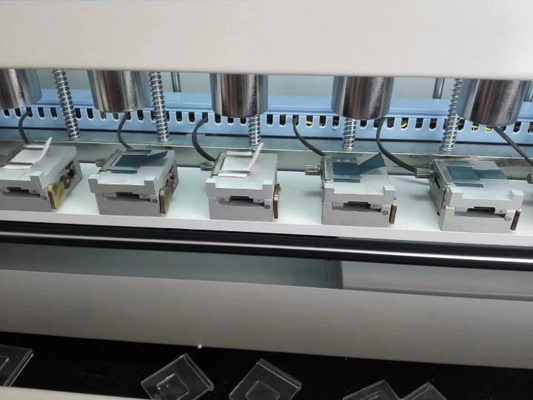

1. Test station: 10

2. samples under pressure load: 10N, error: ±1%

3. Angle range: 0~180", ±1 degree

4. Sample compression time: 5min±5s

5. Compression area :(18x15)mm

6. Crease recovery time: 5 min after pressure relief (slow elastic); 15s (quick bomb)

7. Power: AC 220V 50Hz Power: 80w

8. Dimensions: 1090mm× 450mm× 500mm

9. Weight: 60kg

Features

1. Robot constant automatic pressure, unloading weight, reducing the workload of the experimentals and manual error:

2. The stepper motor automatically turns over the plate, which promotes the smooth turnover action and effectively eliminates the influence of the sample return Angle by the turnover vibration;

3. CCD automatic imaging, dynamic and static image processing, automatic shooting of crease Angle, real-time image saving, easy to test results when there is a dispute as the original evidence to save; At the same time, it can provide a large number of original data specimens required for scientific research and teaching.

4. The test station 1-10 station can be any n/10(n:1-10) to do the test, other stations can be vacant, easy to select a single group or multiple groups of data, greatly improve the work efficiency;

5. In a test process, you can choose a single quick or slow round, or a double mode of quick round and slow round. The CCD camera shoots the quick round crease Angle in 15s, and shoots the slow round crease Angle again in 5min.

6. The test software built-in electronic protractor, (0~180)° can be truly measured, and can correct the data according to the imaging results, to avoid measuring dead corners and other complex test conditions;

7. The test software provides static and dynamic image processing, and holds a variety of data statistics, analysis, storage, output.
