Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | Calibration certificate |
| Model Number: | SL-F13 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Carton box |
| Delivery Time: | 7 working days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 5 unit / month |
| Standard: | ISO 4920, AATCC 22, BS EN 24920, BS 3702, M/S P23/P133, NEXT 23 | Weight: | 5 Kg |
|---|---|---|---|
| Dimensions: | 220 X 260 X 550 Mm(LxWxH) | Angle Of Holder: | 45° |
| Brand: | SKYLINE | Material: | Stainless Steel |
| High Light: | AATCC22 Spray Rating Tester,ISO4920 Spray Rating Tester,ISO4920 Textile Test Equipment |
||

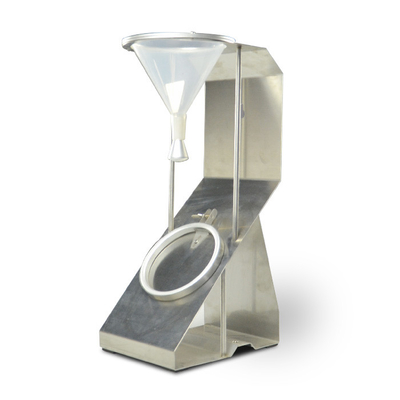

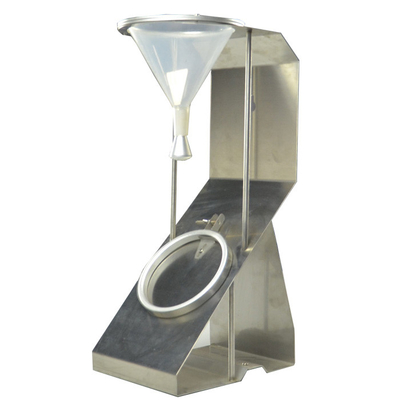

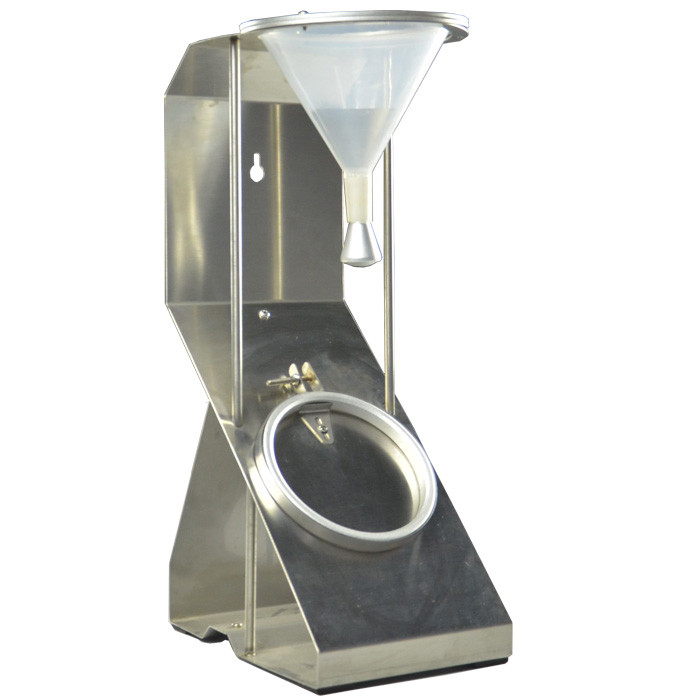

Textile Testing Equipment ISO4920 Spray Rating Tester
Product Information
To determine the surface wetting resistance of fabrics. Comprising a metal framework allowing distilled water to be sprayed through a nozzle onto a test specimen at 45° and 150mm below the nozzle. The appearance of the specimen is compared against an optional photographic scale.
Fabric Spray Rating Tester consists of a metal framework allowing distilled water to be sprayed through a nozzle onto a test specimen at45° and 150mm below the nozzle.
Fabric Spray Rating Tester Specifications
l Nozzle: 19 holes of 0.9mm diameter
l Angle of holder: 45°
l Holder: 150 mm Dia. 150mm below the nozzle
Included Accessories
l Measuring Cup: 250ml
l Photographic Rating Chart (AATCC 22)
Standards
ISO 4920, AATCC 22, BS EN 24920, BS 3702, M/S P23/P133, NEXT 23
| Spray Rating Tester |
| Weight 5KG |
| Dimension 220 ×260×550 mm (L×W×H) |
ISO4920 Spray Rating Tester.pdf
