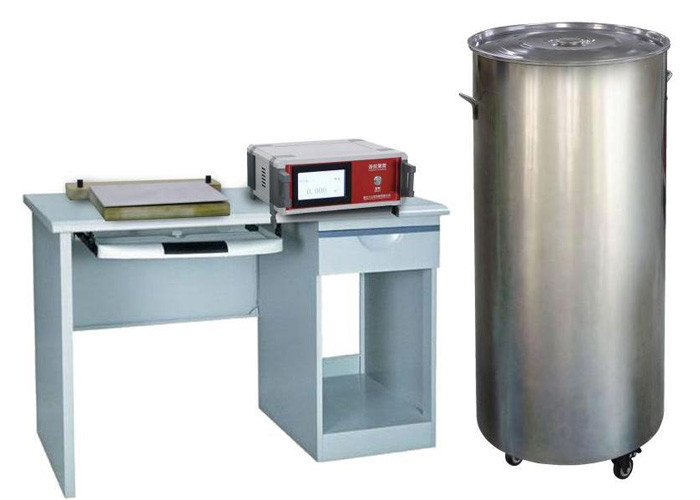

JIS L1094 Faraday Cylinder Static Tester Tester
Introduction
Determination of antistatic properties of textiles, medical protective clothing and other products
Features
1.Full stainless steel Faraday cylinder.
2.Colour touch screen display, Chinese and English menu interface.
Standards
GB/T 12703.2-2021 Textiles Test method for electrostatic properties Part 2: manual friction method
GB/T 12703.2-2009 Textiles Evaluation of electrostatic properties Part 2: Charge surface density;
GB/T 12703.3-2009 Textiles electrostatic properties of the evaluation of part 3: charge and other standards;.
GB/T 12703-1991 Textile electrostatic test methods 7.2 Friction charging of work clothes (E method);
GB 19082-2009 Technical requirements for medical disposable protective clothing 5.9 Antistatic properties;
GB/T12014-2019 Protective clothing Anti-static clothing;
GB/T12014-2009 Anti-static clothing.
YY/T 1642-2019 Medical protective caps;
YY∕T 1799-2020 Technical requirements for reusable medical protective clothing;
GB 19082-2023 Technical requirements for medical disposable protective clothing 5.9 Antistatic;
Technical Parameters
| Range and precision of electrostatic charge determination |
0～±2μC (±0.001µC) |
| Outer cylinder size |
Diameter 500mm, height 1000mm |
| Inner cylinder size |
Diameter 400mm, height 800mm |
| Insulation bracket |
Fluorine resin/acrylic resin/polycarbonate resin |
| Friction cloth |
GB/T 12703.2-2021, size (500±10)mm×(450×10)mm |
| Acrylic |
Double rib knitting structure, mass per unit area: 200g/m2±15g/m2 |
| Nylon |
Double rib knitting structure, mass per unit area: 230g/m2±15g/m2 |
| Friction rod |
Outer diameter: (32 ± 0.2) mm, thickness of (3.1 ± 0.2) mm, length of 400 mm rigid polyvinyl chloride tube |
| Pad cover cloth |
same material as friction cloth, size: 450mm×400mm |
| Metal matting |
Area: 320mm × 300mm, thickness 3mm, grounded with polyethylene covered wire, material: aluminium alloy |
| Double-sided tape |
Thickness 50μm ~ 100μm, width: (20 ± 0.2) mm |
| Insulating rod size |
Diameter 20mm, length 500mm, material: acrylic resin |
| Specimen size |
GB/T 12703.2-2021: specimen according to (warp and weft) or (longitudinal and transverse) each three, specimen size: (350 ± 1) mm × (250 ± 1) mm;
GB/T 12703.2-2009: specimens according to the warp and weft direction of each of the three pieces, specimen size: 250mm × 400mm;
GB/T 12703-1991: the specimen according to the warp and weft of each two, specimen size: 250mm × 300mm;
|
| Dimension |
600mm×600m×850mm |
| Weight |
30kg |
Configuration List
1.Faraday cylinder 1 set
2.Charge test box 0～2μC±0.001µC 1set
3.manual friction device 1 set (in line with GB/T12703.2-2021)
4.Cable 1 piece
5.Product instruction manual 1 copy
Optional accessories
1.Electrostatic brush 1 set
2.Base(Conforms to GB/T12703.2-2009,GB/T12703-1991) 1 pc.
3.Polyethylene tape (in line with GB12014)
4.Friction cloth:
GB/T 12703.2-2009: nylon plain cloth, size: 450mm×350mm;
GB/T 12703-1991: nylon fabric, size: 450mm×50mm;
