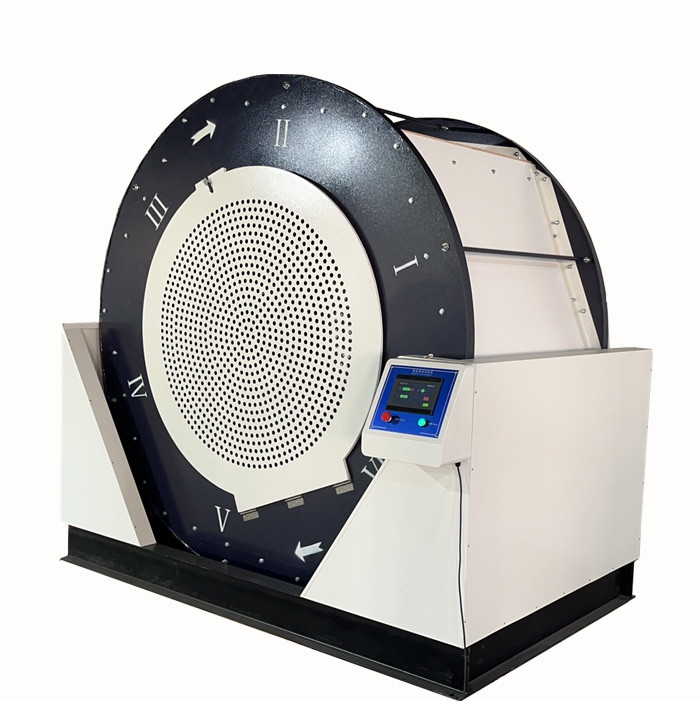

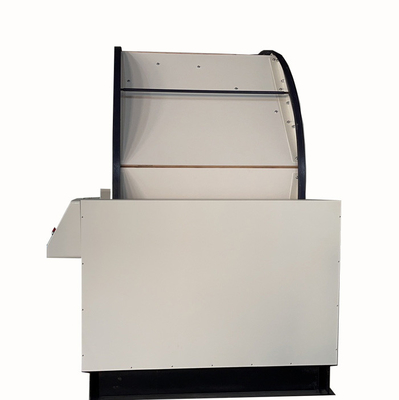

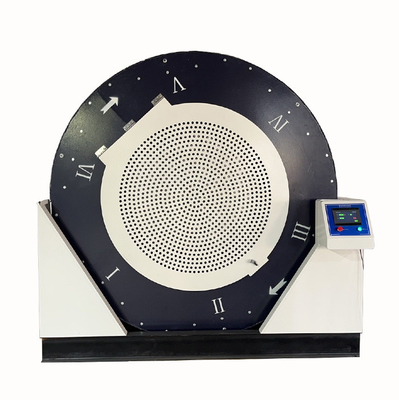

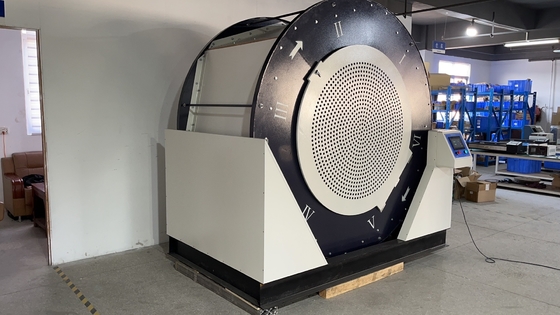

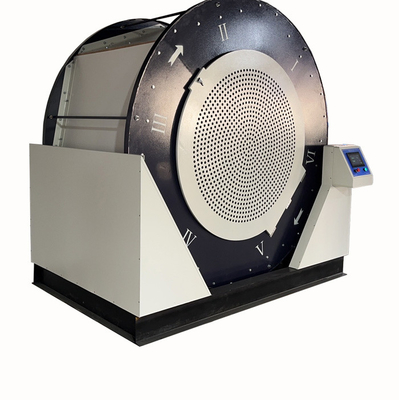

Luggage Roller Impact / Drum Drop Testing Machine

Product description

This product is designed and manufactured in accordance with ISTA and GB standards, and is designed to simulate the tumbling and impact of suitcases and other packaging boxes during transport. The boxes are rolled and impacted in the drum, and after the specified number of revolutions are completed, the damage condition of the boxes is checked as the basis for product improvement.

Based on the standard

QB/T4116-2010 luggage roller drop test method QBT 2155-2010 travelling luggage.

Technical parameters

Applications

• Quality control testing for luggage and suitcase manufacturers

• Packaging durability validation for shipping and logistics companies

• Product development and R&D for travel goods brands

• Third-party testing laboratories and certification bodies

• E-commerce retailers verifying product durability for shipping

• Leather goods and hard-case luggage producers

• Compliance testing for export markets requiring transport simulation

Frequently Asked Questions

Q: What is this equipment used for?
This machine simulates the tumbling, dropping, and impact forces that luggage experiences during transport. It helps manufacturers identify design weaknesses and improve product durability before products reach consumers.

Q: How does the test work?

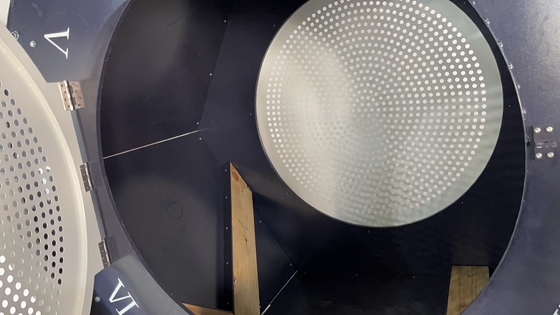

The luggage is placed inside a large rotating drum. As the drum turns, the suitcase tumbles and collides with internal obstacles. After a preset number of revolutions, the operator inspects the specimen for damage.

Q: What standards does it comply with?
The equipment is designed according to QB/T 4116-2010 (Luggage – Drum Test Method) and QB/T 2155-2010 (Travelling Luggage). The design also references ISTA transport simulation principles.

Q: What size luggage can be tested?
The drum has an inner diameter of φ2200mm and can accommodate specimens up to 1000 × 700 × 400mm, covering most standard suitcase sizes and packaging boxes.

Q: Can I set a specific number of test cycles?
Yes. The counter allows you to set any number from 0 to 99,999 revolutions. The machine stops automatically when the preset count is reached.

Q: What types of damage can this test detect?
The test reveals cracks in the shell, handle and wheel failures, zipper separation, seam splitting, and inadequate protection of internal items—helping you pinpoint exactly where improvements are needed.

Q: Is the machine easy to operate?
Yes. Simply place the specimen in the drum, set the desired cycle count on the digital counter, and start the machine. The automatic stop feature allows for hands-free operation.
