Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | Calibration Certificate |
| Model Number: | SL-TL07 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 35 working days |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 2 pcs/ month |
| SKYLINE: | Luggage Drop Test Machine | Drop Height: | 450~1500mm |
|---|---|---|---|
| Maximum Weight Of Test Piece: | 60kg120×120×210cm LxWxH | Power Supply: | 1∮, AC220V, 50Hz, 1/2P |
| Weight (approx.): | 420kg | Dimensions (L × W × H): | 1400 × 1200 × 2140mm |
| High Light: | abrasion testing equipment,physical testing equipment |
||

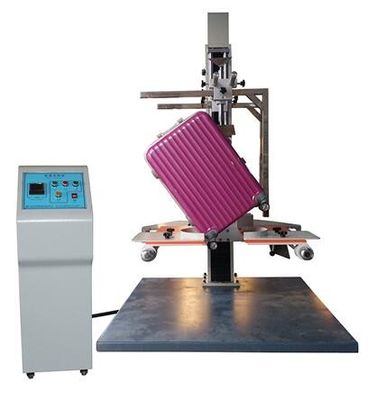

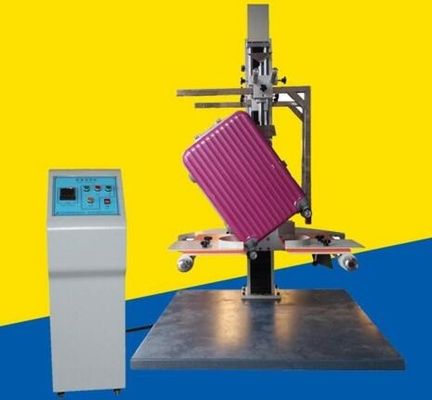

Luggage Drop Test Machine
Use
This series of drop test machine adopts double column direction, spring buffer and height scale indication, and the work is stable and reliable. It is equipped with a professional drop clamp for luggage, which can achieve edge, face and corner drop. During the process of moving or transporting, the product may be damaged and the internal product may be damaged. If the damage is prevented in advance, the machine can be used to test the expected result, so as to obtain the best solution, so as to minimize the transportation process. loss.
According to the standard
QBT 2921-2007 luggage drop test method, QBT 2155-2010 travel luggage.
Product specifications
| Drop height | 450~1500mm |
| Display mode | height ruler |
| Maximum weight of test piece | 60kg |
| Maximum size of test piece | (L × W × H) 800 × 1000 × 800mm |
| Drop panel area | (W × L) 1200 × 1400mm |
| Single wing area | (W × L) 350 × 760mm |
| Power supply | 1∮, AC220V, 50Hz, 1/2P |
| Weight (approx.) | about 420kg |
| Dimensions (L × W × H) | 1400 × 1200 × 2140mm |
Contact Person: Kate Guo
Tel: 13310805373
