Home ProductsLab Testing Equipment

Lab Testing Equipment Luggage Testing Instrument Rod Reciprocating Machine

Lab Testing Equipment Luggage Testing Instrument Rod Reciprocating Machine

  • Lab Testing Equipment Luggage Testing Instrument Rod Reciprocating Machine
  • Lab Testing Equipment Luggage Testing Instrument Rod Reciprocating Machine

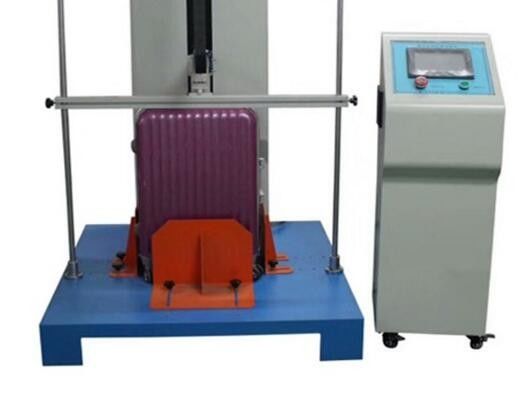

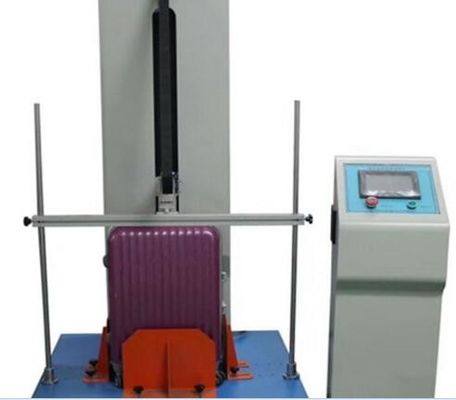

Lab Testing Equipment Luggage Testing Instrument Rod Reciprocating Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-TL07
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: Plywood case
Delivery Time: 35 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 2 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Luggage Testing Instrument Rod Reciprocating Machine Load: Max 50 Lb
Dimension: 120×120×210cm LxWxH Weight: 150kg
Test Speed: Adjustable 5-30 C.P.M Up And Down: MAX: 200 Mm
Highlight:

abrasion testing equipment

,

physical testing equipment

Luggage Testing Instrument Rod Reciprocating Machine



Product Application

Luggage rod fatigue Testing machine applies to the fatigue test of the rod attached on the luggage.During the test, the rod is stretched,which leads gaps,loosing,barrier and deformation of the rod.
Using area:luggage rod fatigue tester, reciprocating tester



Technical parameters

 Test Stroke  20-100cm Adjustable
 Drawing  Speed  0-30cm/sec Adjustabel
 Compression Speed  0-30cm/sec Adjustabel
 Test times  1-999999 Automatic shutdown
 Test power  Pneumatic cylinder
 Specimen height  Hightest 200cm
 Auxiliary equipment  Bags fixed clamp
 Pressure  5-8kg/cm2
 Machine size  120×120×210cm
 Weight  150kg
 Power  1ø, 220V/50Hz





Lab Testing Equipment Luggage Testing Instrument Rod Reciprocating Machine 0

Tag:

physical testing equipment,

brake testing equipment,

abrasion testing equipment
