Textile Fabric Surface Resistance Tester with DC100V Measuring Voltage and 2 × 1014Ω Resistance Measurement for EN 1149-1/ EN 1149-2/ AATCC 76/ BS 6524 Compliance

Textile Fabric Surface Resistance Tester with DC100V Measuring Voltage and 2 × 1014Ω Resistance Measurement for EN 1149-1/ EN 1149-2/ AATCC 76/ BS 6524 Compliance

Brand Name: Skyline
Model Number: SL-F60B
MOQ: 1
Payment Terms: L/C,T/T
Supply Ability: 15 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, Rosh, Calibration
Measuring Voltage:
DC100V
Built-in Timer:
Automatic Reading Lock, Easy To Test
Working Environment:
Temperature: 23℃±1℃, Humidity: 25%±5%RH
Power Supply Form:
AC 220V, 50HZ, Power Consumption 30W
Resistance Measurement Range:
2 × 1014Ω
Basic Error:
≤ ± 10%
Packaging Details:
plywood case
Supply Ability:
15 sets per month
Highlight:

Textile Fabric Surface Resistance Tester

,

EN 1149-2 Resistance Tester

Product Description

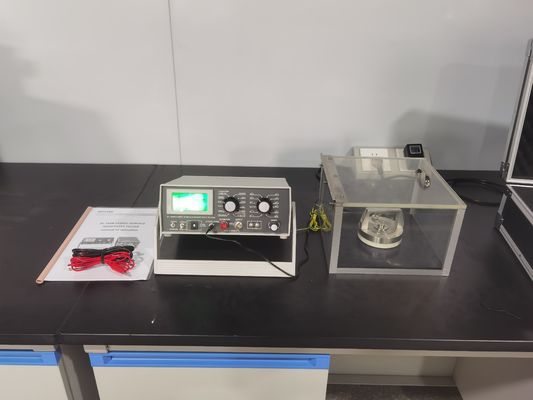

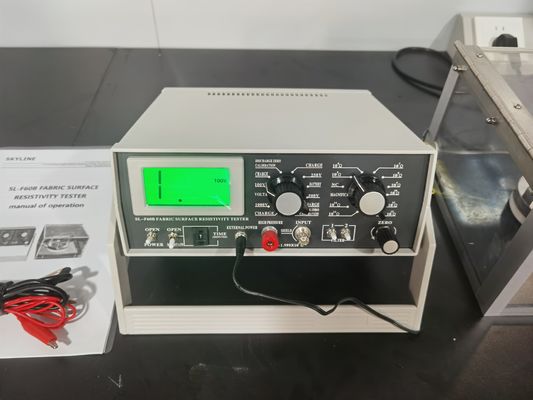

Textile Fabric Surface Resistance Tester
Compliant with EN 1149-1, EN 1149-2, AATCC 76, and BS 6524 standards
Product Overview
This instrument is designed for measuring surface resistivity and point-to-point resistance of anti-static clothing, protective fabrics, carpets, films, and various insulating materials. The surface resistance measurement indirectly indicates the electrostatic discharge time, providing critical data on the material's anti-static properties.
Applicable Standards
GB 12014-2019, GB/T 22042-2008, GB/T12703.4-2010, GB/T 1410, FZ/T64013, BS6524, BS EN1149-1:2006, EN1149-2, AATCC 76
Technical Specifications
  • High integrated 3½ digit display
  • Measuring voltage: DC 100V
  • Built-in timer with automatic reading lock for simplified testing
  • Operating environment: 23℃±1℃ temperature, 25%±5% RH humidity
  • Resistance measurement range up to 2 × 10¹⁴Ω
  • Highest resolution: 100Ω
  • Standard output voltages: 100V, 250V, 500V, 1000V (or 10V, 50V, 100V, 500V)
  • Zero point drift: < ±5% over 1-8 hours
  • Measurement error: ≤ ±10%
  • Power supply: AC 220V, 50Hz, 30W consumption
Standard Configuration
  • Test host: 1 set
  • Point-to-point electrode: 1 set (optional)
  • Surface resistivity electrode: 1 set (optional)
  • Electrode contact plate: 1 group
  • Insulation pad board: 1 piece
  • Electrode distance plate: 1 piece
  • Product instruction manual
  • Power cord: 1
Textile Fabric Surface Resistance Tester with DC100V Measuring Voltage and 2 × 1014Ω Resistance Measurement for EN 1149-1/ EN 1149-2/ AATCC 76/ BS 6524 Compliance 0 Textile Fabric Surface Resistance Tester with DC100V Measuring Voltage and 2 × 1014Ω Resistance Measurement for EN 1149-1/ EN 1149-2/ AATCC 76/ BS 6524 Compliance 1
