Textile Testing Equipment Dyeing Rubbing Tester 30 Times/Minute

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	ISO,ASTM
Model Number:	SL-106

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiate
Packaging Details:	Polly wood case
Delivery Time:	7 days
Payment Terms:	L/C, D/A, Western Union, T/T

Contact Now

Detailed Product Description

Friction Speed:	30 Times/minute	Test Station:	Six Stations
Volume:	560 × 550 × 350cm	Weight:	58kg
Counter:	LED 0 -~999999 Times	Power Supply:	1AC 220V/50HZ 3A
Highlight:	Textile Testing Rubbing Tester , Dyeing Rubbing Tester , 30 Times/Minute Rubbing Tester

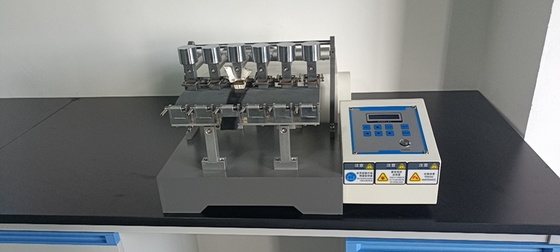

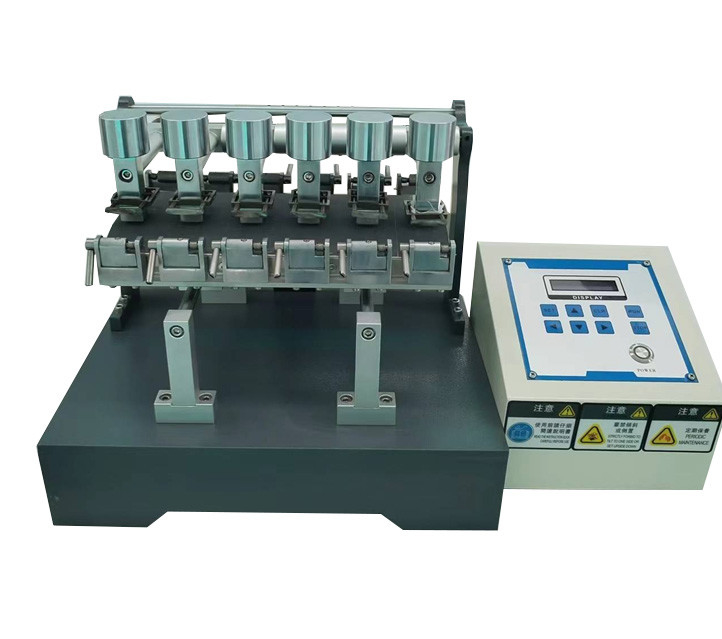

Textile Testing Equipment Dyeing Rubbing Tester

Name: Textile Testing Equipment Dyeing Rubbing Tester 30 Times/Minute
Brand: SKYLINE
SKU: SL-106
Rating: 4.9 (171 reviews)

Description:

This machine is suitable for testing the dyeing fastness of dyed fabrics, leather, etc. after friction

Dry or wet white cotton cloth is tied on the surface of the friction hammer of the machine. After rubbing the colored test piece with a certain load and number of times, the dyeing friction fastness grade is evaluated against the gray mark It can also be used as friction test of organic solvent

Standards:

JIS-L0801, 0823, 0849, 1006, 1084, K6328, P8136

Machine Specification

Test sample	220 × 30mm
White cotton cloth	50 × 50mm
Friction speed	30c. p.m (30 times/minute)
Load of friction hammer	2N+3N
Friction hammer size	20 × 20mm, surface radius 45mm
Contact area of test head	100mm²
Friction distance	about 100mm
Test station	six stations
Counter	LED 0 -~999999 times
Volume	560 × 550 × 350cm
Weight	58kg
Power supply	1AC 220V/50HZ 3A

Textile Testing Equipment Dyeing Rubbing Tester 30 Times/Minute 0
