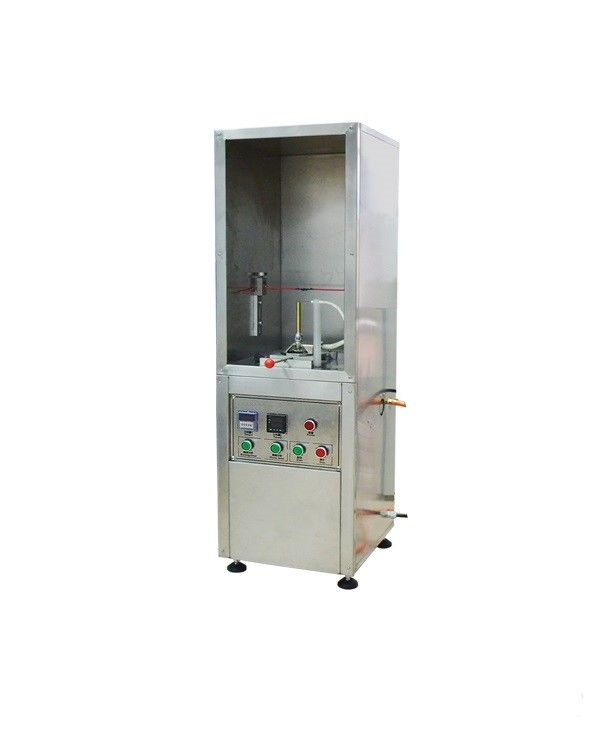

Name: JASO-D 618 Automobile Wire Horizontal Combustion Chamber
Brand: SKYLINE INSTRUMENTS CO.,LTD
Price: 4,500.00 USD
Availability: InStock

Home Products Fire Testing Equipment

JASO-D 618 Automobile Wire Horizontal Combustion Chamber

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiated
Packaging Details:	Plywood case
Delivery Time:	10 work days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1 unit/ month

Contact Now

Detailed Product Description

SKYLINE:

Automobile Wire Horizontal Combustion Test Chamber

Standard:

JASO-D 618

Time Range:

0-9999s

Power Supply:

AC 220V 50HZ

Highlight:

JASO-D 618 Combustion Chamber

Automobile Wire Combustion Chamber

AC220V Fire Testing Equipment

Automobile Wire Horizontal Combustion Test Chamber

Product description
This equipment is suitable for the determination of the flame retardancy of thin-wall insulated low-voltage cables for automobiles. The cable is in the flame until it burns and self-extinguishes within 15 seconds after the flame is removed.

Standard
JASO D 618-1994 thin-wall insulated low-voltage cables for automobiles.

Technical Parameters
One-piece combustion box with brushed stainless steel surface;
Test box: 610(H)mm×310(W)mm×360(L)mm, the front is open;
Control mode: automatic ignition, the torch will automatically go out at the set time;
Blow Torch: The inner diameter of the tube is 10mm, and the flame height is 35mm;
Time range: 0-9999s.

Dimensions: 380mm(L)×470mm(W)×1250mm(H);
Power supply: AC 220V 50HZ.

What is wire heating?

Resistance heating wire is used in a variety of applications for generating heat. Household use can be found in toasters, portable space heaters, warming plates and more. Stove burners are an example of an electrical element used to create heat. Industrial furnaces and dryers use wire elements to produce heat.
