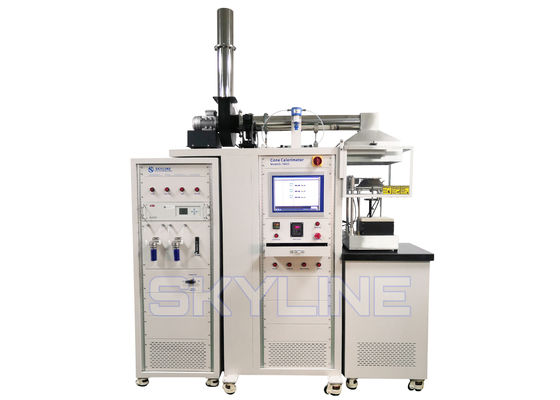

ISO 5660 Cone Gauge Calorimeter

Cone Calorimeter.pdf
Instrument introduction
The cone calorimeter is derived from the oxygen consumption of a rectangular sample (100mm×10mm) tested by Dr. Vytenis Babrauskas at a heat radiation value of 100KW/m2.
The cone calorimeter is based on the principle of oxygen consumption of material combustion. The heat released per 1Kg of oxygen is about 13.1MJ. It measures the heat release of the material, ignition time, oxygen consumption, CO and CO2 production, and the flow of combustion gas.
The cone calorimeter strictly conforms to the size of the laboratory, and the automatic control unit designed by the test software is convenient for the user to operate. In addition, he uses a 17-inch touch screen computer, which is fully compliant with international standards.

Standards compliant
-ISO 5660 fire reaction test, heat release rate, smoke rate and mass loss rate;
-ASTM E1354 Determination of heat and visible smoke release rate of materials and products using an oxygen consumption calorimeter;
-BS 476 Pt.15 combustion and structure test of building materials, determination of product heat release rate;

Technical parameters

Product Features and Application
1.Cone Calorimeter with movable analysis cabinet, can be connected with a large heat release rate test system such as ISO 9705, EN 13823 etc, complied with ISO 5660, ASTM E1354,BS 476 Part 15 etc. testing standards.
2.Integrated test body and 19 inches analysis cabinet, embedded PC 15 Inch Touch screen computer, for the whole control and automatic testing.

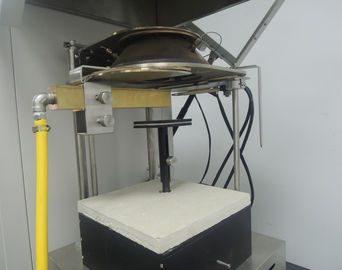

3.Conical heater rated power 5000W, the heat output of 0 ~ 100kW/m2, using PID temperature controller, while the radiation cone can be horizontal or vertical.
4.Exposed to the central part of the surface of the sample 50 x 50mm range, radiation at the center of the deviation is not more than 2%.
5.The sample weighing range 0 ~ 3000g; accuracy: 0.1g.
6.Auto Split Shutter automatically opened to transmit radiation to the sample.
7.ABB EL3020 Paramagnetic oxygen analyzer, using the method of paramagnetic change to measure the concentration of oxygen in the gas. Concentration range of 0-25%.
8.Smoke density analysis using laser system, the system consists of a 0.5mW He Ne laser, the main detector and auxiliary detector.

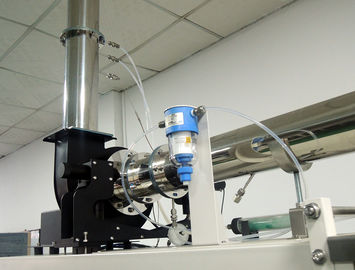

The exhaust system consists of the fan, the smoke collection cover, the exhaust pipe and orifice plate flow meter and so on. Exhaust fan flow rate of 0 ~ 50g/s, precision 0.1g/s.
9.Ring sampler have been installed from the smoke collecting hood at 685 mm, with 12 holes.
10.The exhaust flow rate should be determined by measuring the pressure difference on both sides of the sharp edge orifice 350 mm above the fan, the inner diameter of the sharp
edge orifice plate is 57mm + 1mm.
11.ABB SCC-S Gas sampling system comprises sampling pump, filter, cold trap, waste water discharge, water filters and CO2 filters;
Portable water cooling system without need for waterworks and plumbing when using the Heat Flux meter (for ISO 5660).
12.In order to calibrate the response of the whole test system, the use of a square opening brass calibration burner, used to measure the value of C- coefficient.
13.The data acquisition system be able to record oxygen analyzer, orifice meter, thermocouple and other instruments of the output.

Applications

The Cone Calorimeter is suitable for evaluating the combustion and fire behavior of a wide range of materials, including:​

• Building materials and construction products​

• Railway materials​

• Wire and cable materials​

• Polymer materials​

• Composite materials​

• Materials used for fire research and laboratory testing​

It can be used by material manufacturers, fire testing laboratories, research institutions and other organizations involved in fire performance testing.​

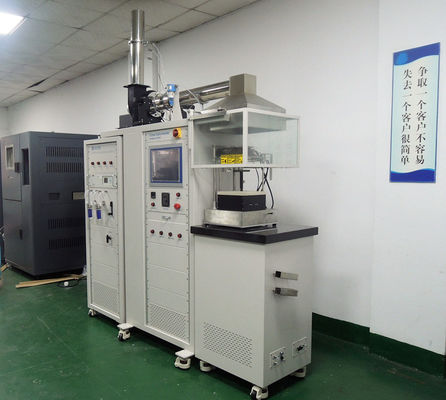

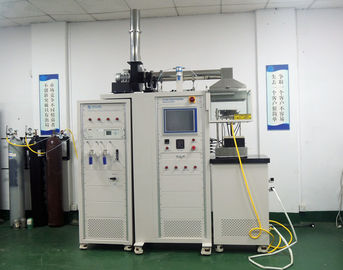

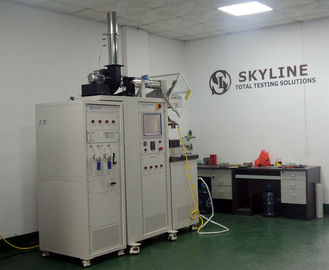

Product Details of the Cone Calorimeter
The name of Cone Calorimeter is derived from the conical heater as used by Dr. Vytenis Babrauskas to inspect test specimen (100mm x 100mm) with flux up to 100kW/m2 for the bench scale oxygen depletion of his development. Cone Calorimeter test is based on the theory that pure combustion calories are in proportion to a necessary amount of oxygen for combustion and 13.1 MJ/kg is generated whenever oxygen 1kg is consumed, and heat emission, ignition time, oxygen consumption, CO and CO2 generation, and flow of ignited gases as generated from test materials are measured.
Standards
ASTM:ASTM D6113,ASTM E1354,ASTM E1740,ASTM F1550
BS:BS 476-15
ISO:ISO 5660
EN:EN 45545-2: 2013
GB:GB/T 16172:2007

Installation Requirements
Electrical: 230 volts Nominal 50 Amps
Ambient Temperature: Operating 10°C to 35°C
Dimensions: Apparatus: 1800mm (W) x 900mm x (H) x 2600mm (D)
Gas Supplies:Methane, Nitrogen, Compressed Air

Please review video of the Cone Calorimeter operation as below link:
https://youtu.be/-U20AJEfArg

Company Profile.pdf

Frequently Asked Questions

Q1:What is a Cone Calorimeter used for?

A1:Cone Calorimeter is used to evaluate the fire behavior and combustion performance of materials. It can measure parameters such as heat release rate, ignition time, oxygen consumption, smoke production, CO and CO₂ generation, and mass loss during combustion.​

Q2:How does a Cone Calorimeter work?

A2: Cone Calorimeter works based on the oxygen consumption principle. During combustion, the amount of oxygen consumed by the test specimen is measured and used to evaluate the heat released by the material.​

Q3:What standards can be used with this Cone Calorimeter?

A3:The product specifications list ISO 5660, ASTM E1354, BS 476 Part 15, ASTM D6113, ASTM E1740, ASTM F1550, EN 45545-2:2013 and GB/T 16172:2007. The applicable standard depends on the specific testing application.​

Q4:What materials can be tested using a Cone Calorimeter?

A4:The Cone Calorimeter can be used for testing building materials, railway materials, wire and cable materials, polymers, composites and other combustible materials according to the applicable test method.​

Q5:What parameters can the Cone Calorimeter measure?

A5:Depending on the system configuration, the equipment can measure heat release rate, ignition time, oxygen consumption, smoke production, CO and CO₂ generation, mass loss and combustion gas flow.​

Q6:Is smoke analysis available?

A6:Yes. Smoke density analysis is listed as an optional configuration. The system can also be equipped with an infrared analyzer for CO and CO₂ analysis.​

Q7:Can the Cone Calorimeter be connected to other fire testing systems?

A7:According to the product specifications, the Cone Calorimeter can be connected with larger heat release rate testing systems such as ISO 9705 and EN 13823.​
