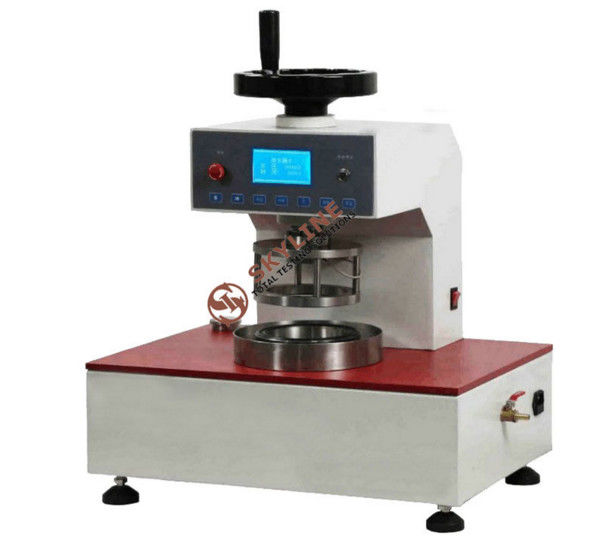

AATCC 127 SL-F43 Fabric Hydrostatic Pressure Tester / Textile Hydrostatic Testing Machine

AATCC 127 SL-F43 Fabric Hydrostatic Pressure Tester / Textile Hydrostatic Testing Machine

  • AATCC 127 SL-F43 Fabric Hydrostatic Pressure Tester / Textile Hydrostatic Testing Machine
AATCC 127 SL-F43 Fabric Hydrostatic Pressure Tester / Textile Hydrostatic Testing Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-F43
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 20 working days
Payment Terms: MoneyGram, Western Union, T/T, D/P
Supply Ability: 1 unit/ week
Contact Now
Detailed Product Description
SKYLINE: Fabric Hydrostatic Pressure Tester Sample Chuck Area: 100cm2
Rising Speed: 10cm/min60cm/min100cm/min Power Supply: AC220V; 70W
High Light:

textile lab equipment

,

textile testing instruments

SL-F43 Fabric Hydrostatic Pressure Tester /Textile Hydrostatic Testing Machine



Application
This machine is used for the determination of the hydrostatic pressure resistance of fabrics and also for determining the hydrostatic resistance of coating materials. The waterproofing resistance of various fabrics (such as canvas, tarpaulin, crepe cloth, tent cloth, rainproof clothing cloth, etc.) is expressed by the hydrostatic pressure of the fabric.

Applicable standards
GB/T 4744-2013 Textile water-repellent performance testing and evaluation hydrostatic pressure method; ISO-811, AATCC127, JIS L1092, FZ/T 01004

Features
1. This instrument is controlled by microcomputer, digital display, using high precision pressure sensor
2. The cloth sample clamping device is made of high quality stainless steel.
3. Select high-precision pressure sensor, the measurement result is accurate, stable and reliable.
4. The instrument is easy to operate and convenient

Technical Parameters

1.Sample clamping method: manual;

2.Measuring range: 0~300kPa (30mH2O)/0~100kPa (10mH2O)/0~50kPa (5mH2O) range optional;

3.Resolution 0.01kPa (1mmH2O);

4.Measurement accuracy: ≤±0.5% F•S;

5.Test times: ≤99 times, optional delete function;

6.Test methods: pressurization method, constant pressure method and other test methods;

7.Constant pressure method holding time: 0~99999.9S; Timing accuracy: ±0.1S;

8.Sample clamp area: 100cm²;

9.Total test time timing range: 0~999999.9, timing accuracy: ±0.1S;

10.Pressurization speed: 0.5~50kPa/min (50~5000mmH2O/min) digitally set arbitrarily;

11.Power supply: AC220V, 50Hz, 250W;

12.Dimensions: 470×410×60mm;

13.Weight: about 25kg;



Fabric Hydrostatic Pressure Tester.pdf
