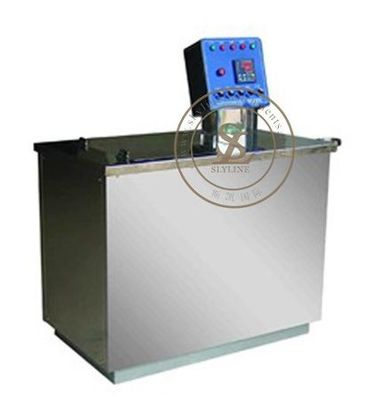

SL - D05 High Temperature Laboratory Dyeing Machine For Formulation Of Production Recipes

SL - D05 High Temperature Laboratory Dyeing Machine For Formulation Of Production Recipes

  • SL - D05 High Temperature Laboratory Dyeing Machine For Formulation Of Production Recipes
SL - D05 High Temperature Laboratory Dyeing Machine For Formulation Of Production Recipes
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE
Model Number: SL-D05
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 10-15 days
Payment Terms: MoneyGram, Western Union, T/T, D/P
Supply Ability: 1 unit/ week
Contact Now
Detailed Product Description
SKYLINE: High Temperature Laboratory Dyeing Machine Keeping Temperature: 0-99min
Temperature Increment: 0.6-3.5degree/min Temperature Range: 20-140degree
Temperature Accuracy: +/-0.6degree Beaker Volume: 250ml/450ml
Dimensions: 920 X 650 X 120mm(LxWxH) Instrument Weight: 170kg
High Light:

textile lab equipment

,

textile testing instruments

High Temperature Laboratory Dyeing Machine



Application

High Temperature Lab Dyeing Machine for formulation of production recipes. Single bath with hinged lid, fitted with manually controlled water cooling coil.



Product information
Fit for laboratory dyeing and washing fastness test, etc.
Computer can imitate automatically and correctly the actual production conditions.
The specially designed sealed and high quality stainless steel cups do not stain colors.
No leakage of water or air. No rust. Easy cleaning.
Wholly stainless coil pipe type cooling. Fast cooling speed and high cooling efficiency.
Various kinds of test cups of different capacity are for your choice to suit laboratory dyeing of different bath ratio and yarn/ fabric quantity.
Tools for opening and clamping the cups are equipped with. Very easy operation.
Test cup Q’ty Power consumption RPM Hot oil consumption Weight

12 6kw 42 50 liters 155kg

24 9kw 42 65litres 180kg



Specification

 Temperature range  20-140degree
 Keeping temperature  0-99min
 Temperature increment  0.6-3.5degree/min
 Temperature reduction  6degree/min
 Temperature accuracy  +/-0.6degree
 Rotating speed  45RPM
 Beaker volume  250ml/450ml
 Max program  15
 Dimensions  920 x 650 x 120mm(LxWxH)
 Instrument weight  170kg



High Temperature Laboratory Dyeing Machine.pdf
