Home ProductsTextile Testing Equipment

47±3r / Min ISO3175.1-1 1998 Dry Testing Machine Revolving Axle Tilt Angle 50±1°

47±3r / Min ISO3175.1-1 1998 Dry Testing Machine Revolving Axle Tilt Angle 50±1°

  • 47±3r / Min ISO3175.1-1 1998 Dry Testing Machine Revolving Axle Tilt Angle 50±1°
47±3r / Min ISO3175.1-1 1998 Dry Testing Machine Revolving Axle Tilt Angle 50±1°
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-F30
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Carton box
Delivery Time: 7 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 10 unit / month
Contact Now
Detailed Product Description

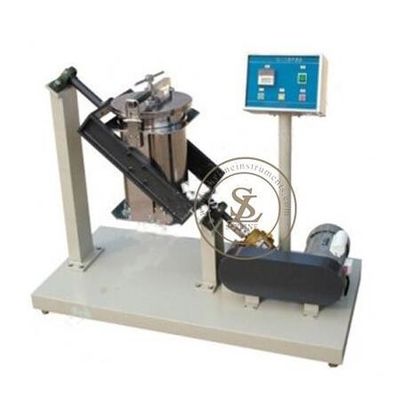

SKYLINE: Dry Testing Machine Speed: 47±3r/min
Standards: FZ/T01083-1999, FZ/T01013-1991, FZ80007.3-1999, ISO3175.1-1:1998, ISO3175.1-2:1998 External Dimensions: 1050x580x800mm
Weight: 100kg Revolving Axle Tilt Angle: 50±1°
Working Time: 0-30min Power Source: Ac220V , 50Hz
Highlight:

textile lab equipment

,

textile testing instruments

Dry Testing Machine



Application

It is used for testing external colour and size alteration of various textiles, knitting fabrics and hot-meltbonded linings after they were washed by organic solvent and alkali solvent.

Standards FZ/T01083-1999, FZ/T01013-1991, FZ80007.3-1999, ISO3175.1-1:1998, ISO3175.1-2:1998 and so on.

Working Pattern Continuous revolution or crawl by timing and readout by digital.



Technical parameter

 Capacity of Washtubs  11.4L
 Speed  47±3r/min
 Revolving Axle Tilt Angle  50±1°
 Working Time  0-30min
 External Dimensions  1050x580x800mm
 Weight  100kg
 Power Source  Ac220V , 50Hz

Tag:

textile testing instruments,

textile lab equipment,

textile testing machines
