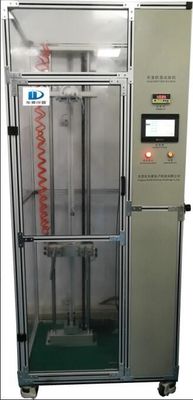

Touch Screen + PLC Lab Testing Equipment Laptop Computers Drop Test Machine

Touch Screen + PLC Lab Testing Equipment Laptop Computers Drop Test Machine

  • Touch Screen + PLC Lab Testing Equipment Laptop Computers Drop Test Machine
Touch Screen + PLC Lab Testing Equipment Laptop Computers Drop Test Machine
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-M009
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
Drop Angle: 0°, 45°, 90° Max Tested Weight: 1Kg
Drop Surface Size: 350*350*50mm Power Requirements: AC220V±10% 50Hz
Dimensions: 800*900*2200mm Weight: 230Kg
High Light:

physical testing equipment


brake testing equipment

Touch Screen + PLC Lab Testing Equipment Laptop Computers Drop Test Machine

1. Product application

The device is used to evaluate the impact of the product on the performance of the product when it is unexpectedly dropped during the actual use of the product. It is suitable for small-sized electronic products such as mobile phones, PADs, e-books, and electronic dictionaries to be tested for drop in a specified direction or specified position.


2. System structure and principle

Principle Description: The system uses the touch screen to communicate with the PLC, controls the servo motor to drive the suction cup clamp on the drop mechanism to lift, and cooperates with the action of the unhooking device and the suction cup to realize the drop test. 3 different direction suction cups to meet the user's drop test of product edges, corners and faces.


3. Product features

3.1 Double column linear bearing guidance, servo motor + timing belt drive lifting, can set the test height arbitrarily, external encoder directly detects the actual rising position, positioning is more accurate

3.2 Three different angles of suction cups to achieve multi-angle test of samples, automatic inductive adsorption function, two suction cups at each angle, avoiding angle inversion when falling vertically

3.3 Touch screen + high response PLC control, and all electrical control parts use complete sets of imported products, the response speed is faster, the operation is more stable, and the data such as acceleration, maximum landing speed and test time can be measured.

3.4 Fully enclosed peripheral frame and screened door with electromagnetic lock provide more reliable protection for the operator's safety

3.5 Select high-flow vacuum generator for greater suction and test for larger samples

3.6 Fast vacuum compensation function to reduce the adhesion of test samples and suction cups, and the drop is more accurate

3.7 The drop plate is placed directly on the ground to avoid other factors, making the test closer to reality.


4. Main function

4.1 Directional Drop Test

4.2 Free fall test

4.3 Automatic and manual functions

4.4 Reference height compensation function

4.5 Drop height, end speed, and number of tests can be set

4.6 Fast vacuum compensation

4.7 Data measurement function, automatically calculate acceleration, landing speed, test time, etc.;

4.8 Fully enclosed safety door protection function (safety door is open, equipment does not start, protect operator safety)


5. Technical parameters

5.1 Drop height: It can be set within the range of 400-1800mm, the displacement accuracy is ±1mm, and the full acceleration during the drop: the error is within 0.2g. The sample was controlled to fall from a height of 1 m through the device and the instantaneous velocity when contacting the floor was >4.2 m/s. Drop surface deviation: the product orientation and the initial deflection are not more than 5° when landing. If it is greater than 5°, it is a failed drop test; the success rate of controlled drop is >99%.

5.2 Drop angle: 0°, 45°, 90°, 2 large faces, 4 facets, 8 edges and 4 corners of the rectangular sample that can be dropped

5.3 Relevant standards: The product complies with the IEC68-2-32 standard

5.4 Suction cup specifications and quantity: Ф16mm suction cup, 6

5.5 Test data: drop height, acceleration, end speed, test time, number of tests, etc.

5.6 Test sample weight: maximum allowable 1000g

5.7 Drop surface size: 350*350*50mm

5.8 Drop surface material: (can be customized)

White granitic granite, the surface is polished, no obvious scratches, holes and dents; thickness is 49 ~ 51mm; flatness <1mm. After being fixedly placed on the drop machine, the steel ball of mass 32g is free to fall from a height of 50cm, and the height of the bounce is 30-40cm; the height is freely dropped from the height of 100cm, and the bounce height ranges from 70 to 80cm.

Inspection method: use a vacuum cleaner and a rag to remove the surface, and then touch the surface with the palm to visually feel whether there is a bump; if you can feel the thorns intuitively, the surface is unqualified.

Wood board: 3cm thick high density wood board. The quality 130g steel ball falls from a height of 50cm, the bounce height is 10-15cm; the height falls from 70cm, and the bounce height is 15cm-20cm.

5.9 Drop surface roughness: The roughness values ​​of marble and cement boards are 0.59μm and 1.29μm, respectively (reference data)


 Drive mode  servo motor + synchronous toothed belt
 Control mode  touch screen + PLC, Chinese and English operation interface
 Air source requirements  ≥0.5MPa clean compressed air
 Power Requirements  AC220V±10% 50Hz
 Equipment Power  400W
 Dimensions  800*900*2200mm
 Equipment weight  230Kg


6. Working environment and storage environment requirements


6.1 Working temperature and humidity: temperature 18 ° C ~ 30 ° C, humidity 40% ~ 60% (non-condensing)

6.2 Storage temperature and humidity: temperature -10 ° C ~ 60 ° C, humidity 40% ~ 60% (non-condensing)
