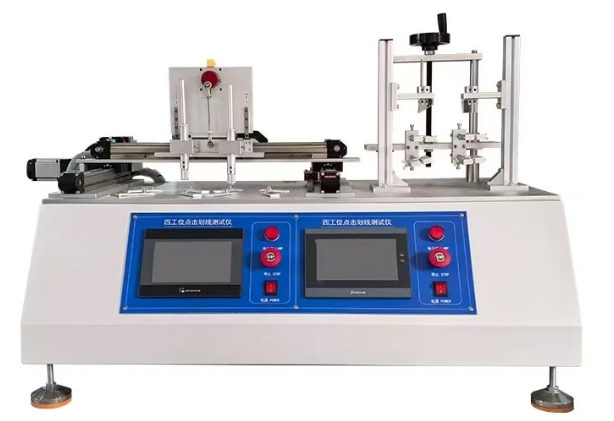

Clicking and Slide Repeat Durability Testing Machine for Touch Screen of Phone&Tablet PC

Name: Clicking and Slide Repeat Durability Testing Machine for Touch Screen of Phone&Tablet PC
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-FL40
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-FL40
MOQ:	1 unit
Price:	negoitable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Calibration certificate

SKYLINE:

Touch Screen Clicking And Slide Tester

Test Station:

4 (work At The Same Time)

Load Weight:

250gf(Can Be Adjustable)

Test Speed:

30-4500mm/min (adjustable)

Working Power:

AC220v, 50HZ

Packaging Details:

Plywood case

Supply Ability:

1 unit

Product Description

Product introduction

The Touch Screen Clicking and Slide Tester is a dedicated testing device for small consumer electronic screens such as resistive screens, capacitive screens, mobile phone screens, e-books, MP4 players, and electronic dictionaries. The equipment mainly performs click/grid drawing on hand-written screens and touch screens, simulating normal human operation of touch screen products. It tests whether the touch screen will experience dead screen, failure, overloading, misalignment, etc.

Technical Parameter

Model	SL-FL40
Test Station	4 Stations, 2 for clicking and 2 for slide
Counter	0-999999time can be set
Speed	30-4500mm/min (adjustable)
Control System	Touch Screen Control
Y-axis movement range	150mm
X-axis movement range	120mm
Force	250gf(Can be adjustable)
Control Mode	A,Digitally set the operating speed (X/Y/Z axis)
	B,Digitally set the running displacement (X/Y axis)
	C,It can draw straight lines, rectangles, triangles and circles
Power	800W
Working Power	AC220V/50Hz/5A
Dimension	806045cm
Weight	60Kg
Accessory	One operation manual, one power cord, and one set of Allen sockets
