Name: Switches Keyboards Phone 8 Stations Pneumatic Button Life Fatigue Testing Machine Key Durability Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-P40
Price: 4,500.00 USD
Availability: InStock

Home Products Lab Testing Equipment

Switches Keyboards Phone 8 Stations Pneumatic Button Life Fatigue Testing Machine Key Durability Tester

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration certificate
Model Number:	SL-P40

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	35 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Button Life Test Machine	Test Station:	8 (work At The Same Time)
Load Weight:	50, 100, 200, 300, 500g Each Four (optional)	Test Speed:	5~60/min (knob Adjustable, LCD Display)
Working Power:	AC220v, 50HZ

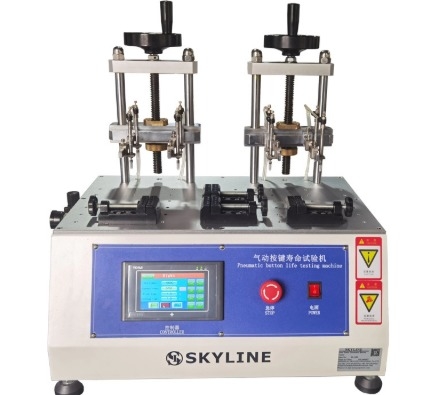

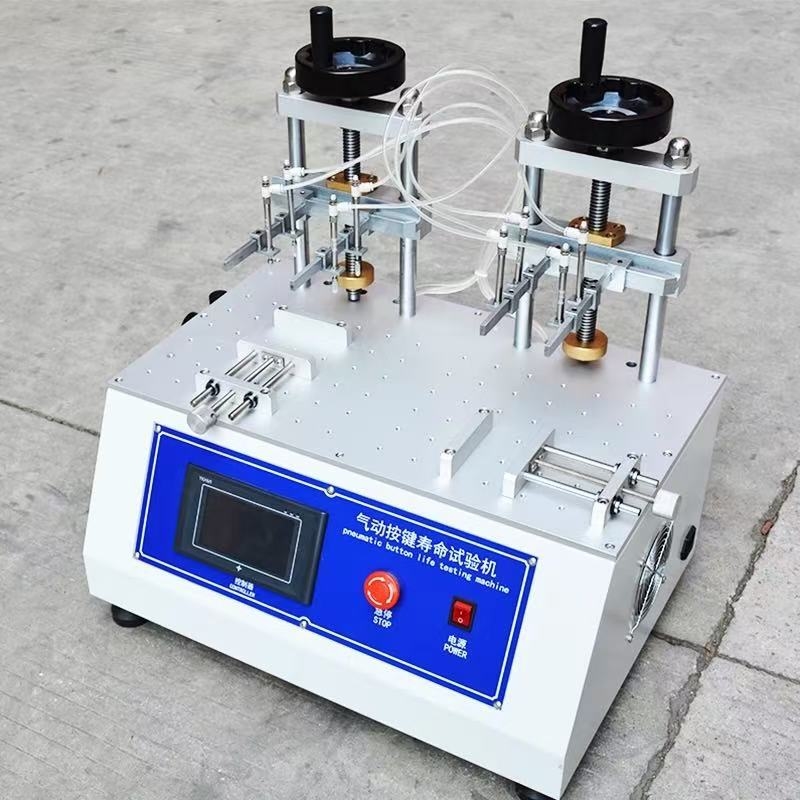

Product introduction

Touch Screen Pneumatic Button life Tester Switch Mobile Phone Button Fatigue Tester Pneumatic key life testing machine for mobile phones, remote controls, calculators, walkie-talkies, telephone and other electronic consumer products key fatigue test. Pneumatic key life testing machine is the driving cylinder in a certain press load, times, speed on a single product in accordance with 1-2-3-4-5-6 order to simulate the actual service life of the product test.

Features

1. The pneumatic button life tester is a special device for performing button fatigue test.

2. The structure is reasonable and unique, the volume is small, the small cylinder is used to hit, and the pressing position and the striking speed can be adjusted, which is suitable for various types of button tests.

3. The sensor is used to directly detect the key life count.

4. Touch screen control, can be cycled test, or can be tested at the same time.

5. The equipment is stable, low noise and maintenance free.

Product technical parameter

Test station	Can test two samples at the same time, each can do six buttons
Control method	Touch screen setting input direct action, the action is simple and convenient
Action mode	The cylinder drives the probe to reciprocate up and down
Test method	The buttons can be set to act at the same time, or the six buttons can be set to act in sequence, and several stations can be arbitrarily set to pause actions as needed
Test speed	10~60 times/min, manually adjustable
Test mobile phone thickness	10 ~ 50mm can
Clamping fixture	Clamp both sides of the lower cover
Height adjustment	Manual direct adjustment
Machine size	600×450×520mm
Power supply	220V
Weight	About 55kg
