Place of Origin: | China |
Brand Name: | SKYLINE |
Certification: | Calibration certificate |
Model Number: | SL-FN02 |
Minimum Order Quantity: | 1 unit |
---|---|
Packaging Details: | Carton box |
Delivery Time: | 7 working days |
Payment Terms: | Western Union, MoneyGram, T/T |
Supply Ability: | 10 unit / month |
SKYLINE: | Needle Metal Detector Machine | Weight: | 80 Kg |
---|---|---|---|
Dimensions: | 1700 × 900 × 1100mm(LxWxH) | Sensitivity Adjustment: | 1-10 |
Alarm Mode: | Buzzer, Light | MaterialPower Supply: | 220V 50Hz |
High Light: | textile lab equipment,textile testing instruments |

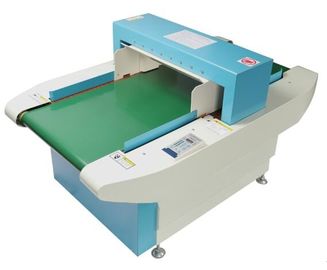

Intelligent Anti Interference Needle Detector Machine Sensitivity 1-10
Product Introduction
This product is used to detect broken needles (broken sewing machine needles), iron wire and other ferromagnetic metals that are mixed in textile products, to avoid direct or indirect damage to consumers and enterprises. This product is also an export product manufacturer. And the testing equipment that raw material suppliers must have is a symbol of the company's quality standards, which can better accept more foreign trade orders for enterprises.
Features
①The movement and main electrical components and conveyor belts are imported, and the circuit control system uses a computer to program the chip, which makes the machine more accurate, reliable and stable.
②With automatic control system, using special magnetic sensitive materials and special processes for scientific production, the detection accuracy of the needle detector is particularly high.
③It has the advantages of high detection accuracy and high detection thickness.
④Automatic detection, automatic sensing, 0-10 sensitivity stepless adjustment. When there is a broken needle, the conveyor belt automatically stops and returns.
⑤It has two alarm modes: sound effect and light.
⑥The automatic shutdown power saving function is not detected for 10 minutes.
⑦Appearance luxury, novel style, saving time and electricity, convenient and fast.
Technical Parameters
Detection method | Magnetic induction |
Sensitivity adjustment | 1-10 |
Alarm mode | Buzzer, light |
Detection width | 600mm |
Detection height | 100mm |
Power supply | 220V 50Hz |
Power consumption | 150W |
Weight | 80kg |
Dimensions (length × height × width) | 1700 × 900 × 1100mm |
Needle Metal Detector Machine (2).pdf
What is Needle detector machine?
Needle Metal Detector – Needle Detector is used to detect metal broken needle for finished products. This conveyor metal detector equipment is widely used in garment industry, shoe, toy and etc.
