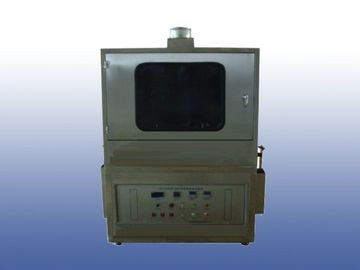

Fire Testing Equipment 95% Gas Purity Mining Cable Burning Tester

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-7607

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiated
Packaging Details:	plywood case
Delivery Time:	10 work days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1 unit/ month

Contact Now

Detailed Product Description

Standards:

MT386-1995 And MT818.1～3-2009

Burning Timer:

0.1-999.9S/H/M

Gas:

Purity ≥ 95%

Temperature Sensor:

0～800℃

High Light:

flammability test chamber

flammability testing labs

95% Gas Purity Mining Cable Burning Tester MT386-1995 / MT818.1～3-2009

Application

Apples to check the coal mine cable for flaming resistance test and cable connector head flaming test.

Standard

According to MT386-1995 and MT818.1～3-2009

Technology parameters

Load current	AC10.0～3000A adjustable, Adopt the touch button for setting
Burner	Inner diameter is 9.5mm, burner tube made by H62 brass
Flame height	inner flame is 75±5mm and outside flame is 125±10mm
Gas	Methane which the purity ≥ 95%
Exhaust system	Stop during the testing and Start after testing by manual
Temperature Sensor	0～800℃,K style thermocouple: φ1mm*50mm.There is buzzer prompt when temperature be up to 204℃±2℃
Burning timer	0.1-999.9S/H/M adjustable continually
Extending-fire timer	0.1-999.9S/H/M adjustable continually, which with a Stop button

Fire Testing Equipment 95% Gas Purity Mining Cable Burning Tester 0

What is a test fire and why is it important?
What Is Fire Testing? Fire testing intends to understand the influence of a direct flame on a material or product. Companies may analyze the effect on wiring or cable, building materials or furnishings.
