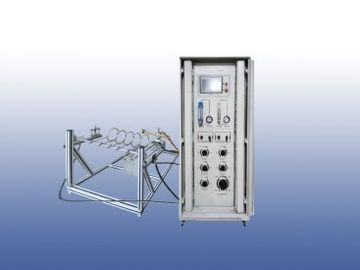

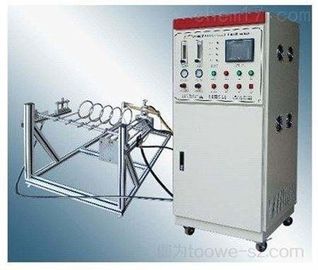

IEC60331-11:19999 Over Current Fire Testing Equipment For Wires And Cables Resistance To Fire

Name: IEC60331-11:19999 Over Current Fire Testing Equipment For Wires And Cables Resistance To Fire
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-7606
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-7606
MOQ:	1 unit
Price:	negotiated
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1 unit/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Standards:

IEC60331-11:19999, IEC60331-21:1999, IEC60331-23:1999, IEC60331-25:1999

Laboratory:

27m3

Gas Flow Range:

1-10L/min

Burning Time:

0～999.9S/ M/H

Packaging Details:

plywood case

Supply Ability:

1 unit/ month

Highlight:

flammability test chamber

flammability testing labs

Product Description

Over-current Flammability Testing Equipment For Wires and Cables Resistance to Fire

Application

Applies to check the test integrity of the circuit for wires or cables, use to check the flame retardant properties of insulating refractory characteristics of cable and wires and cables with fireproof layer under overheating, over-current, etc abnormal condition.

Standards

According to IEC60331-11:19999, IEC60331-21:1999, IEC60331-23:1999, IEC60331-25:1999, and BS6387

Technical parameters

Ribbon burner	500m for length of nozzle, 15mm for width of nozzle. Number of the hole of 1.32mm diameter is totally 470
Gas flow range	1-10L/min; glass rotor flow meter indicates the current flow, Using propane gas or liquefied petroleum gas (LPG)
Area flow range	10-100L/min, glass rotor flow meter indicates the current flow
Position of burner	Burner center horizontal at 70±10mm under the specimen lowest point, nozzle at 45mm distance from the specimen center vertical
Specimen supported	150mm for inner diameter of metal ring, using 12mm stainless steel materials.NO:5
Thermocouple	K type thermocouple with stainless steel sheathed, which diameter is 1.5mm and according to GB/T 16839.1
Temperature calibration	2pcs of thermocouples display data average value between 750+50-10℃required in 10 minutes, and difference value between average value and either of the two thermocouple’s display data cannot over the 40℃
Test power	Output voltage is AC0～1000V and output current is AC0.01-0.70A, four circuits adjustable independent
Burning time	0～999.9S/ M/H adjustable
Laboratory	27m3

What is a test fire and why is it important?
What Is Fire Testing? Fire testing intends to understand the influence of a direct flame on a material or product. Companies may analyze the effect on wiring or cable, building materials or furnishings.

IEC60331-11:19999 Over Current Fire Testing Equipment For Wires And Cables Resistance To Fire 0
