UL Cable Vertical Tray Fire Testing Equipment

UL Cable Vertical Tray Fire Testing Equipment

  • UL Cable Vertical Tray Fire Testing Equipment
  • UL Cable Vertical Tray Fire Testing Equipment
  • UL Cable Vertical Tray Fire Testing Equipment
UL Cable Vertical Tray Fire Testing Equipment
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-7601S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: plywood case
Delivery Time: 20 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
Standards: UL1685-2007, UL2556-2007 Components: Ignition Source & Supply Fire Control System Etc
Control System: 5.7inch Color Touch Screen Burner: L341mm×D30mm With 242 Holes
High Light:

flammability test apparatus


flammability testing labs

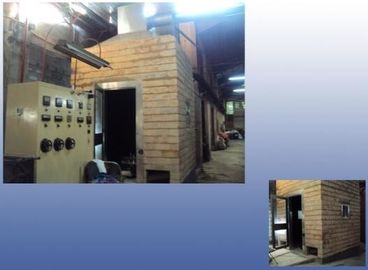

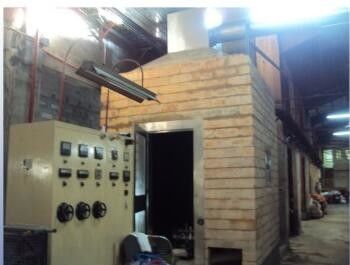

UL Cable Vertical-Tray Flammability Testing Equipment With 5.7inch Color Touch Screen



Apply to check the vertical-tray fire test for determining values of cable flame propagation and smoke release when the cables are subjected to a flaming ignition source. (It is nothing to the purpose of cables, such as the electric power, telecommunications etc.)


Main components

Main consist of Ignition source & supply fire control system, collection hood & exhaust duct flux control system, pressure measurement instrumentation of gas, smoke measurement instruments & temperature measurement system, flame height measurement system etc.



According to the clause 9.6 & 9.7 of UL1685-2007, UL2556-2007


Main parameter
 Test room  Fire resistance bricks for walls and which density is 1698kg/m3, Interface spray black paint, and the outer size of the room is W2438×D2438×H3353mm
 Door  Stainless steel frame and wired-glass door, the overall size is W0.9× H2.0m
 Smoke collection hood  Which made by stainless steel, each side is to be sloped 400, the hood as a cube and each side length is 914mm, there is a dust mesh under the hood and each side length is 610mm
 Observation window  Which as a square and each side length is 457mm, 1295mm distance from the lower side of the window to floor, 1143mm distance from right of the window to the wall
 Air inlets which size are 559×343mm, 914×305mm, 2438×343mm
 Exhaust duct  L9000×φ406mm, install it at the centered in on the right side of the cube hood
 Cable tray  H2400mm, the rundle as a square which size is L305×W25×D25, and both rundles distance is 299mm
 Burner  L341mm×D30mm with 242 holes
 Gas flux  13.2L/min, 0.1Mpa for gas pressure
 Flux checking  The differential pressure flowmeter sense smoke pipeline flow speed , provide basis for the control of fan speed
 Light transmittance  photocell sense the smoke density during the flaming
 Height of flame  Infrared visible light show the current height of the flame real-time
 Special software  Draw up the curve by the pip flow, smoke density, height of the flame ,and form a table automatically, through the printer printing
 Control system  5.7inch color touch screen, PLC from Japanese Panasonic, SCM, 16 bits high-performance AD transform etc



How are fire protection products tested?
Many fire tests are run by official laboratories for the purpose of product certification. However, some manufacturers of fire protection products also maintain their own facilities and run tests for R & D purposes before going to the expense and exposure of a test at a third party facility.



UL Cable Vertical Tray Fire Testing Equipment 0
