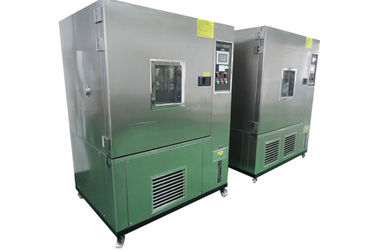

Name: High Temperature Test Chamber Chamber For Testing VOC And Formaldehyde Emission
Brand: SKYLINE
SKU: SL-E01

High Temperature Test Chamber Chamber For Testing VOC And Formaldehyde Emission

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

SKYLINE:	1000L Temperature And Humidity Test Chamber	Inner Size:	100010001000
Controller:	TEMI” South Korea“TEMI”	Temperature Fluctuation:	≤ ± 1 ℃;
Temperature Uniformity:	≤ 2 ℃;	Power Supply:	380V ± 10% V; 50Hz;
High Light:	climatic test chamber , humidity testing equipment , High Temperature Test Chamber For VOC

High Temperature Test Chamber chamber for testing VOC and Formaldehyde Emission

Applications

To simulate test environment with different temperature and humidity
Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test,moistening test and drying test…
Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
Uncover test unit weakness in a short-term test with accelerated time effect

Specifications

Inner size WHDCM	405040	506050	507560	608580	100100800	100100100
External size WHDCM	90136154	100146184	100161210	110171237	150186257	150186267
Temperature range	-40°C~+150°C (A:-20°C B:-40°C )
Humidity range	20%~98%R.H.(10%-98%R.H/5%~98%R.H)
Temp humidity analytic accuracy/ uniformity	±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.
Temperature humidity control accuracy/fluctuation	±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.
Heat/cooling time	About 5.2°C/min;about 1.2°C/min (5~10°C/min is a special optional condition )
Inner and outer materials	SUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer.
Insulation materials	Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
Cooling system	Air cooling/single segment compressor(-20°C) ,air and water double segment compressor (-40°C~-70°C)
Protection devices	Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system
Parts	Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze
Controller	TEMI” South Korea“TEMI” “OYO” Japan's “OYO” Brand optional
Compressor	Original France“Tecumseh”brand
Power	1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz

Features

Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
Control temperature&humidity well-distributed, precisely and steady.
Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
