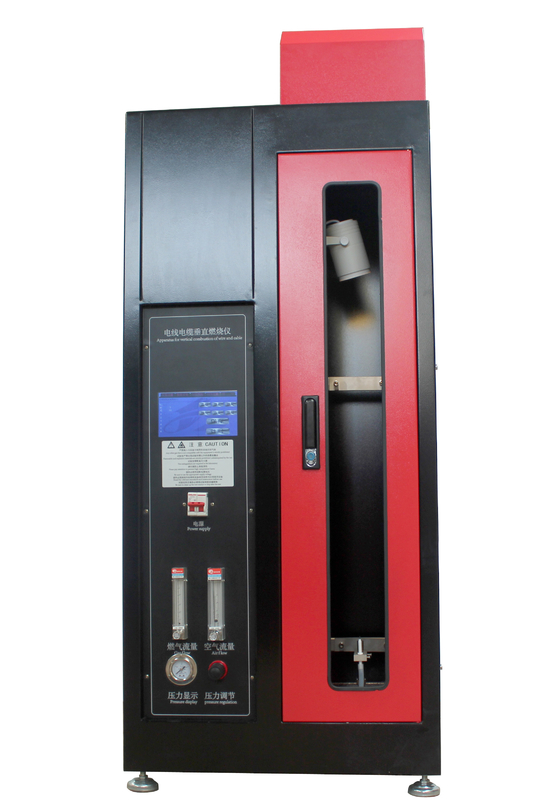

Affordable Electrical Cable Testing Equipment with 600±25mm Specimen Length

Product Description:

One of the key features of this product is its gas flow range, which can be adjusted to suit your specific testing needs. With a range of 0.1-1L/min (100~1000cm3/min), you can be sure that this flammability testing equipment will deliver precise results every time.

Another useful feature of the EC60332/EN50265-1 Single Cable Vertical Flaming Test Machine is its control function. You can choose to operate the machine manually or automatically, depending on your requirements. This flexibility ensures that you can conduct tests with ease and efficiency.

In addition to its advanced features, this flammability test chamber also comes equipped with an Ignition Point Monitor. This function allows you to monitor the ignition point of the cable being tested, giving you greater control and accuracy over your test results.

When it comes to power supply, the EC60332/EN50265-1 Single Cable Vertical Flaming Test Machine requires 220V±10% and 50Hz, ensuring consistent and reliable performance.

In summary, the EC60332/EN50265-1 Single Cable Vertical Flaming Test Machine is a top-of-the-line flammability testing equipment that is perfect for assessing the vertical flame spread of single cables. With its adjustable gas flow range, control function, and Ignition Point Monitor, you can be confident in the accuracy and reliability of your test results. So why wait? Invest in this high-quality flammability test chamber today and take your testing to the next level!

Features:

• Product Name: Flammability Testing Equipment
• Burner: 46~78mm for height of blue luminous cone, 148~208mm for total height of flame, which according to GB/T5169.14-2007, IEC60695-11-2
• Gas Flow Range: 0.1-1L/min(100~1000cm3/min), Can Be Adjusted
• Temperature measurement system: According to GB/T5169.14-2007 and IEC60695-11-03 standard requirements, including temperature copper (10g), K type thermocouple and diameter is 0.5 mm with stainless steel sheathed, stopwatch and thermometer etc.
• Control function: Switch can choose to be manual or automatically according to the actual needed
• Standards: IEC60332-1-1:2004, IEC60332-1-2:2004, IEC60332-1-3:2004, EN50265-1, EN50265-2-1
• Burning Index Detector
• flammability test chamber
• Burning Index Detector

Technical Parameters:

This fire resistance tester is suitable for cable flame test and insulation cable test.

Applications:

The SKYLINE SL-F15 has a gas flow range of 0.1-1L/min (100~1000cm3/min), which can be adjusted as per the requirement of the user. The burning time can be continuously set between 0.1-999.9 seconds, allowing the flame to continuously burn the specimen during the setting time. The equipment uses high purity propane gas or liquefied petroleum gas, which is provided by the user. The area of the specimen that can be tested is less than 0.5mm2.

The control function of the equipment can be switched between manual and automatic as per the requirement of the user. The device is highly efficient and reliable, providing accurate results every time. The equipment is packed in a plywood case for safe transportation and delivery, which takes approximately 10 working days. The price of the product is negotiable, and the payment terms include T/T, Western Union, and MoneyGram.

The SKYLINE SL-F15 is an ideal product application for various testing scenarios, including cable testing, plastic testing, textile testing, and many more. The equipment is widely used in industries such as electrical, electronic, automotive, aerospace, and military. The product is designed to meet the specific needs of the industry and provide accurate results.

In conclusion, the SKYLINE SL-F15 is a highly efficient and reliable cable testing machine that provides accurate results every time. The product is manufactured in China and is CE certified. The equipment can be used in various industries and testing scenarios, making it a versatile and useful tool. The supply ability of the product is one unit per month, and the packaging details include a plywood case for safe transportation.

Support and Services:

Our Flammability Testing Equipment product comes with comprehensive technical support and services to ensure that your testing needs are met. Our team of experts is available to answer any questions you may have about the product and its operation, as well as provide troubleshooting assistance. In addition, we offer calibration and maintenance services to keep your equipment operating at optimal performance levels. Our goal is to provide you with the best possible experience when using our Flammability Testing Equipment, and we are committed to ensuring your satisfaction every step of the way.

Packing and Shipping:

Product Packaging:

• 1 Flammability Testing Equipment unit
• Power cord
• User manual
• Calibration certificate

Shipping:

• Weight: 15 lbs
• Dimensions: 18in x 12in x 8in
• Ships via UPS Ground or FedEx Ground
• Shipping cost calculated at checkout

FAQ:

Q1: What is the brand name of this flammability testing equipment?

A1: The brand name of this equipment is SKYLINE.

Q2: What is the model number of this equipment?

A2: The model number of this equipment is SL-F15.

Q3: Is this equipment certified?

A3: Yes, this equipment is certified with CE.

Q4: Where is this equipment manufactured?

A4: This equipment is manufactured in China.

Q5: What are the payment terms and packaging details for this equipment?

A5: The payment terms for this equipment are T/T, Western Union, and MoneyGram. The packaging details are a plywood case. The price is negotiable and the minimum order quantity is 1 unit. The supply ability is 1 unit per month and the delivery time is 10 working days.
