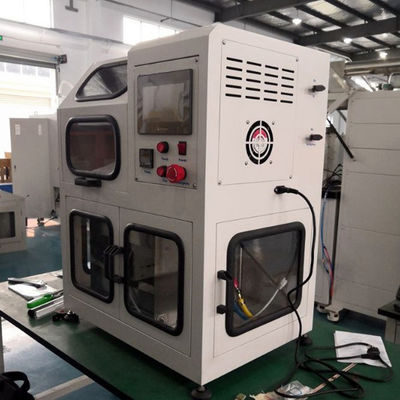

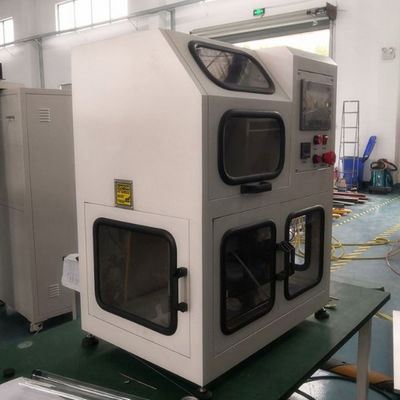

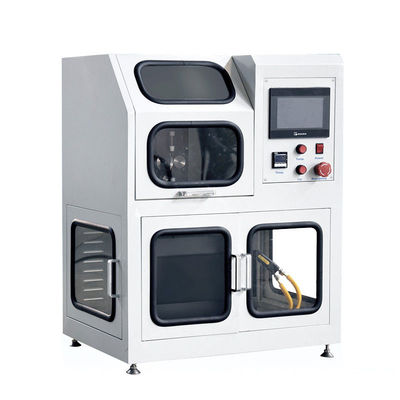

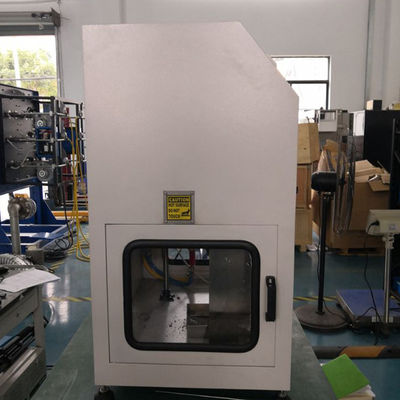

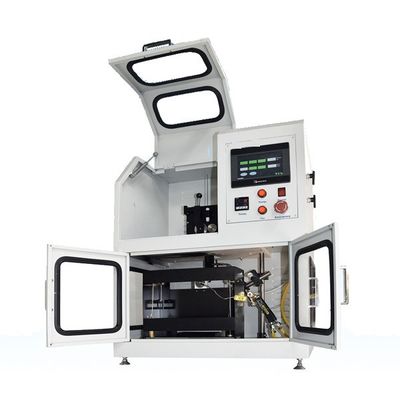

Molten Metal Splashes Impact Test Apparatus

Molten Metal Splashes Impact Test Apparatus

  • Molten Metal Splashes Impact Test Apparatus
  • Molten Metal Splashes Impact Test Apparatus
  • Molten Metal Splashes Impact Test Apparatus
  • Molten Metal Splashes Impact Test Apparatus
  • Molten Metal Splashes Impact Test Apparatus
Molten Metal Splashes Impact Test Apparatus
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL821
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: Plywood case
Delivery Time: 10 working days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: Fire Testing Equipment
Contact Now
Detailed Product Description
Standard: AQ 6103 ,ISO 9150:1988 , CSN EN 348:1992 ,GB 8965.2:2009, GB/T 17599:1998 Motor Speed: Can Be Adjust
Dimension: 700mm (W) X 850mm (H) X 500mm (D) Weight: 42kg
Installation Requirements: Electrical Requirements: 220V, 50HZ, 5A Gas Requirements: Oxygen, Acetylene
High Light:

flammability test apparatus

,

flammability testing labs

Molten Metal Splashes Impact Test Apparatus



Product Introduction

Projections of molten metal drops at a point on a vertical oriented test specimen and measurement of the number of the drops required to cause a 40 K temperature rise in a sensor behind the specimen.​



Features

Drop guide to collect the drops and to guide them towards the vertically oriented test specimen.

Senor for measuring the temperature linked to a recording device.

Holding frame and counterweights for the test specimen.

Motor speed can be adjust so that the steel rod is fed at the rate of (10 f 1) g/mm.

Needle valves adjust the O2 and acetylene flow rate.

LCD Screen display and control the motor speed.



Standard

AQ 6103 ,ISO 9150:1988 , CSN EN 348:1992 ,GB 8965.2:2009,  GB/T 17599:1998



Size: 700mm (W) X 850mm (H) X 500mm (D)

Weight: 42kg

Installation requirements: Electrical requirements: 220V, 50HZ, 5A

Environmental Requirements: Temperature (20+2)degree C, Humidity (65+5)%

Gas requirements: oxygen, acetylene



Molten Metal Splashes Impact Test Apparatus.pdf



What are the different types of fire testing?
Fire testing – such as reaction and resistance to fire testing of materials and structures, and the performance testing of fire suppression components and systems (eg extinguishers and sprinklers), of detection and alarm systems and cables, and of smoke and heat ventilation systems.
