Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-F15 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | neogitable |
| Packaging Details: | plywood case |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 unit / month |
| Control Function: | Switch Can Choose To Be Manual Or Automatically According To The Actual Needed | Area Flow Range: | 0.1-1m3/h(1.66~16.6dm3/min), Can Be Adjusted |
|---|---|---|---|

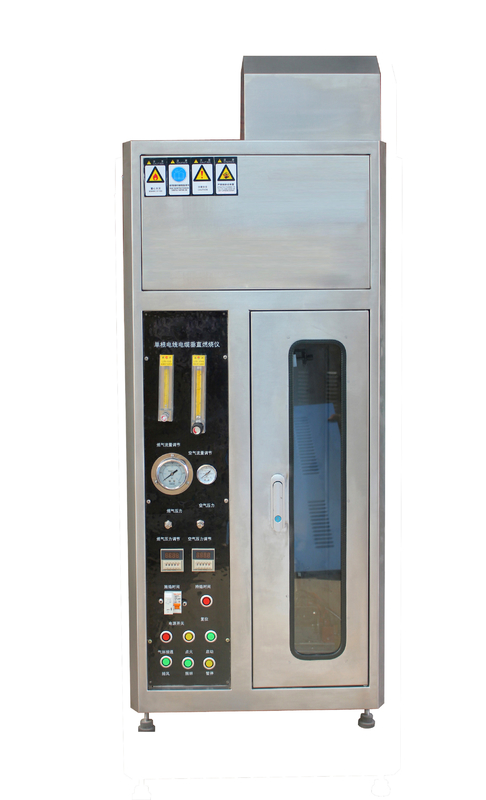

| Chamber Size: | W300 * D450 * H1200mm | Product Name: | EC60332/EN50265-1 Single Cable Vertical Flaming Test Machine Cable Flammability Assessment Chamber |
| Standards: | IEC60332-1-1:2004, IEC60332-1-2:2004, IEC60332-1-3:2004, EN50265-1, EN50265-2-1 | Gas Flow Range: | 0.1-1L/min(100~1000cm3/min), Can Be Adjusted |
| Burning Time: | Continuously Setting Between 0.1-999.9S, During The Setting Time Flame Could Continuously Burning The Specimen | Power Supply: | 220V±10%, 50Hz |
Our Flame Propagation Analyzer comes with a burner that has a height of 46~78mm for the height of the blue luminous cone and 148~208mm for the total height of the flame. This burner meets the requirements of GB/T5169.14-2007 and IEC60695-11-2. The burning time can be continuously set between 0.1-999.9 seconds, allowing the flame to burn the specimen for the set time duration.
The equipment's gas flow range can be adjusted between 0.1-1L/min (100~1000cm3/min) to meet different testing requirements. This Flammability Testing Equipment is categorized as Fireproofness Assessment Apparatus.
This equipment is specifically designed to check the single insulation wire and cable vertical spreading test, which has a total section area less than 0.5mm2. It ensures that the tested materials do not catch fire easily, making them safer to use.
This Flammability Testing Equipment is perfect for cable flame test and electrical cable testing equipment. It is also a great Flammable Material Tester.
| Product Name | EC60332/EN50265-1 Single Cable Vertical Flaming Test Machine Cable flammability assessment Chamber |
| Burner | 46~78mm for height of blue luminous cone, 148~208mm for total height of flame, which according to GB/T5169.14-2007, IEC60695-11-2 |
| Specimen Length | 600±25mm |
| Power supply | 220V±10%, 50Hz |
| Burning time | continuously setting between 0.1-999.9S, during the setting time flame could continuously burning the specimen |
| Chamber Size | W300 * D450 * H1200mm |
| Application | Applies to check thesingle insulation wire and cable vertical spreading test which total section area less than 0.5mm2 |
| Gas | Use high purity propane gas or liquefied petroleum gas (provide by user-self) |
| Area flow range | 0.1-1m3/h(1.66~16.6dm3/min), can be adjusted |
| Gas flow range | 0.1-1L/min(100~1000cm3/min), can be adjusted |
This product is also equipped with Combustion Rate Meter and Ignition Point Monitor, and is an electrical cable testing equipment.
The SKYLINE SL-F15 Fire Resistance Tester is an essential piece of equipment for any industry that deals with electrical wires and cables. This product is designed to perform cable flame tests that measure the flammability of wires and cables, and is certified with CE and manufactured in China.
The SKYLINE SL-F15 Fire Resistance Tester has a gas flow range of 0.1-1L/min (100~1000cm3/min) which can be adjusted. The burner is designed to 46~78mm for height of blue luminous cone, 148~208mm for the total height of the flame, which is according to GB/T5169.14-2007, IEC60695-11-2.
The SKYLINE SL-F15 Fire Resistance Tester is specifically designed to perform the single insulation wire and cable vertical spreading test which total section area is less than 0.5mm2. It has an area flow range of 0.1-1m3/h(1.66~16.6dm3/min) which can be adjusted. It uses high purity propane gas or liquefied petroleum gas which is provided by the user.
The SKYLINE SL-F15 Fire Resistance Tester is suitable for use in a variety of industries. This product is ideal for use in the production and testing of wires and cables, as well as in research and development.
The SKYLINE SL-F15 Fire Resistance Tester is available for purchase with a minimum order quantity of 1 unit. Payment terms include T/T, Western Union, and MoneyGram. The supply ability is 1 unit per month with a delivery time of 10 working days. The product is packaged in a plywood case for safe transport.
Overall, the SKYLINE SL-F15 Fire Resistance Tester is a reliable and efficient tool for anyone in need of a flammability test chamber. Its gas flow range, burner design, and area flow range make it an ideal choice for cable flame tests.
Our Flammability Testing Equipment is designed to meet industry standards and regulations for testing the flammability of various materials. We offer technical support and services to ensure that our customers can properly operate and maintain their testing equipment. Our team of experts can provide assistance with installation, calibration, troubleshooting, and repairs. Additionally, we offer training programs to ensure that our customers have a thorough understanding of the equipment and testing procedures. Contact us for more information on our technical support and services.
Product Packaging:
Shipping:
Q1: What is the brand name of this flammability testing equipment?
A1: The brand name of this equipment is SKYLINE.
Q2: What is the model number of this flammability testing equipment?
A2: The model number of this equipment is SL-F15.
Q3: Is this flammability testing equipment certified?
A3: Yes, this equipment is certified with CE certification.
Q4: What is the minimum order quantity of this flammability testing equipment?
A4: The minimum order quantity of this equipment is 1 unit.
Q5: What are the payment terms for this flammability testing equipment?
A5: The payment terms for this equipment are T/T, Western Union, and MoneyGram.
Q6: What is the supply ability of this flammability testing equipment?
A6: The supply ability of this equipment is 1 unit per month.
Q7: What is the delivery time for this flammability testing equipment?
A7: The delivery time for this equipment is 10 working days.
Q8: What are the packaging details for this flammability testing equipment?
A8: The equipment is packaged in a plywood case.
Q9: Is the price for this flammability testing equipment negotiable?
A9: Yes, the price for this equipment is negotiable.
