Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-F15 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | neogitable |
| Packaging Details: | plywood case |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 unit / month |

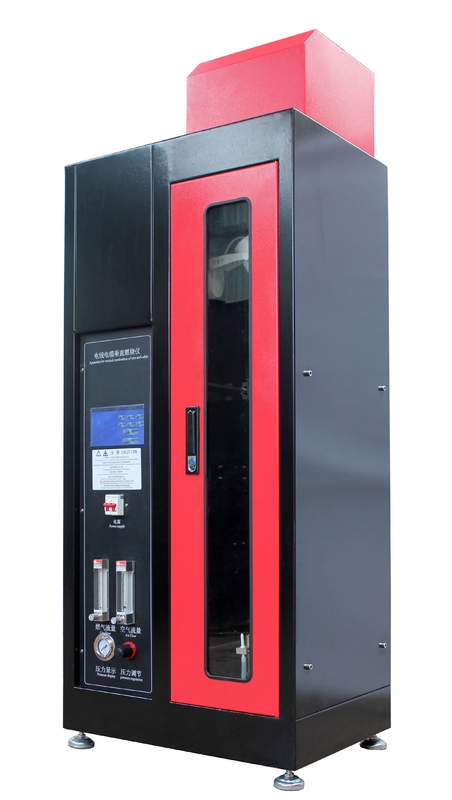

| Product Name: | EC60332/EN50265-1 Single Cable Vertical Flaming Test Machine Cable Flammability Assessment Chamber | Gas Flow Range: | 0.1-1L/min(100~1000cm3/min), Can Be Adjusted |
|---|---|---|---|
| Temperature Measurement System: | According To GB/T5169.14-2007 And IEC60695-11-03 Standard Requirements, Including Temperature Copper (10g), K Type Thermocouple And Diameter Is 0.5 Mm With Stainless Steel Sheathed, Stopwatch And Thermometer Etc. | Gas Flow Range: | 0.1-1L/min(100~1000cm3/min), Can Be Adjusted |
| Testing Temperature: | This Device Is Located In A Stuffiness Room And The Temperature Keeping The 23±10℃ For Testing | Burner: | 46~78mm For Height Of Blue Luminous Cone, 148~208mm For Total Height Of Flame, Which According To GB/T5169.14-2007, IEC60695-11-2 |
| Chamber Size: | W300 * D450 * H1200mm | Standards: | IEC60332-1-1:2004, IEC60332-1-2:2004, IEC60332-1-3:2004, EN50265-1, EN50265-2-1 |
The chamber size of the Flammability Testing Equipment is W300 * D450 * H1200mm, providing ample space for testing cables and other materials. The product's gas flow range is 0.1-1L/min(100~1000cm3/min), which can be adjusted according to the user's requirements. Additionally, the area flow range of the product is 0.1-1m3/h(1.66~16.6dm3/min) and can also be adjusted as needed.
With the Flammability Testing Equipment, users can test the flammability of various materials accurately. The product is equipped with a vertical flaming test machine cable flammability assessment chamber that tests materials' reaction to fire. The machine's vertical design allows for testing of elongated materials such as cables, wires, and other materials.
The Flammability Testing Equipment's design ensures accurate and consistent results. The product's gas flow range and area flow range are adjustable, making it easy to test materials of different sizes and shapes. The product is built with high-quality materials, ensuring durability and longevity.
In conclusion, the Flammability Testing Equipment is an essential tool for industries that require fireproof materials. This product is designed to meet EC60332/EN50265-1 standards and accurately tests materials' flammability. Its adjustable gas flow range and area flow range make it easy to test materials of different sizes and shapes. The product's vertical flaming test machine cable flammability assessment chamber allows for testing of elongated materials, such as cables and wires. The Flammability Testing Equipment is built with high-quality materials, ensuring durability and longevity.
| Product Name | EC60332/EN50265-1 Single Cable Vertical Flaming Test Machine Cable flammability assessment Chamber |
| Gas Flow Range | 0.1-1L/min(100~1000cm3/min), Can Be Adjusted |
| Area flow range | 0.1-1m3/h(1.66~16.6dm3/min), can be adjusted |
| Temperature measurement system | According to GB/T5169.14-2007 and IEC60695-11-03 standard requirements, including temperature copper (10g), K type thermocouple and diameter is 0.5 mm with stainless steel sheathed, stopwatch and thermometer etc. |
| Burning time | continuously setting between 0.1-999.9S, during the setting time flame could continuously burning the specimen |
| Area Of Specimen | Total Section Area Less Than 0.5mm2 |
| Area Flow Range | 220V±10%, 50Hz |
| Application | Applies to check thesingle insulation wire and cable vertical spreading test which total section area less than 0.5mm2 |
| Power supply | 220V±10%, 50Hz |
| Gas flow range | 0.1-1L/min(100~1000cm3/min), can be adjusted |
This Combustion Resistance Device, Flammable Material Tester, cable testing machine is designed to assess the flammability of single insulation wire and cable by conducting vertical spreading tests on specimens with a total section area less than 0.5mm2. It has a gas flow range of 0.1-1L/min(100~1000cm3/min) that can be adjusted, and a power supply of 220V±10%, 50Hz. The temperature measurement system includes temperature copper (10g), K type thermocouple and diameter is 0.5 mm with stainless steel sheathed, stopwatch and thermometer etc. Burning time can be continuously set between 0.1-999.9S, during which the flame could continuously burn the specimen.
The testing temperature of the SL-F15 Flammable Material Tester is kept at 23±10℃, which is located in a stuffiness room. The device is equipped with a temperature measurement system that includes temperature copper (10g), K type thermocouple, and a diameter of 0.5 mm with stainless steel sheathed, stopwatch, and thermometer. The switch can be operated manually or automatically according to the actual needs.
This testing machine is commonly used in various industries, such as wire and cable manufacturing, electronic appliances, and other relevant fields. It is a necessary tool for ensuring the safety and reliability of products. The SL-F15 Flammable Material Tester is also CE-certified and originates from China. The minimum order quantity is 1 unit, and the supply ability is 1 unit per month, with a delivery time of 10 working days. The packaging details include a plywood case.
Overall, the SKYLINE SL-F15 Flammable Material Tester is a reliable and efficient device for cable flammability assessment chamber. It is a must-have tool for companies and organizations that prioritize safety and quality in their products.
Our Flammability Testing Equipment product comes with comprehensive technical support and services to ensure optimal performance and accuracy. Our team of experts is available to assist with installation, calibration, and maintenance of the equipment. We also provide training sessions to familiarize users with the features and operation of the equipment.
In addition, our product comes with a warranty and we offer repair services for any issues that may arise. We also provide upgrades and replacement parts to keep the equipment up-to-date and functioning at its best.
Our technical support and services are designed to provide our customers with peace of mind and confidence in their Flammability Testing Equipment investment.
Product Packaging:
Shipping:
Frequently Asked Questions for SKYLINE SL-F15 Flammability Testing Equipment:
Q: What is the model number of this Flammability Testing Equipment?
A: The model number of this Flammability Testing Equipment is SL-F15.
Q: Is this Flammability Testing Equipment certified?
A: Yes, this Flammability Testing Equipment is CE certified.
Q: Where is this Flammability Testing Equipment manufactured?
A: This Flammability Testing Equipment is manufactured in China.
Q: What is the minimum order quantity for this Flammability Testing Equipment?
A: The minimum order quantity for this Flammability Testing Equipment is 1 unit.
Q: What are the payment terms for purchasing this Flammability Testing Equipment?
A: The payment terms for purchasing this Flammability Testing Equipment are T/T, Western Union, and MoneyGram.
Q: What is the supply ability for this Flammability Testing Equipment?
A: The supply ability for this Flammability Testing Equipment is 1 unit per month.
Q: What is the delivery time for this Flammability Testing Equipment?
A: The delivery time for this Flammability Testing Equipment is 10 working days.
Q: What are the packaging details for this Flammability Testing Equipment?
A: The packaging details for this Flammability Testing Equipment are plywood case.
Q: Is the price negotiable for this Flammability Testing Equipment?
A: Yes, the price for this Flammability Testing Equipment is negotiable.
