| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | calibration certificate |
| Model Number: | SL-T610 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negoitable |
| Packaging Details: | Carton box |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 2 pcs/ month |
| Skyline: | Cami 6 Months Old Dummy | Weight: | 17.5 Lb Or 7.94 Kg |
|---|---|---|---|
| Standards: | ASTM F2088,ASTM F2167,ASTM F833 | Standing Height: | 26.25 In Or 66.68 Cm |
| Seated Height: | 17.50 In Or 44.45 Cm | Dimension: | 70*31*17 Cm |
| High Light: | abrasion testing equipment,brake testing equipment |
||
ASTM F2012Lab Testing Equipment ASTM F404 CAMI Infant Six Months Old Dummy
Product information

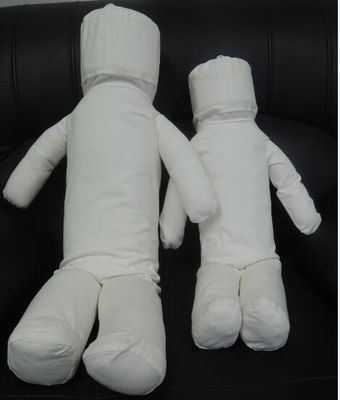

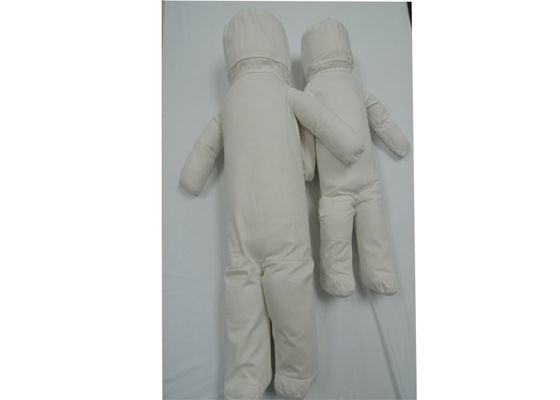

This dummy is based upon a leather skeleton, which has approximately the external shape of the dummy when viewed frontally. Cast lead or aluminum blocks are attached to the head, upper and lower arms, upper and lower parts of the torso and upper and lower legs to approximate the mass distribution of the corresponding infant. The aluminum blocks are used on arms and legs to prevent reverse motion at elbows and knees. These weights are riveted to the skeleton. CAMI Infant Dummy
Technical parameters
| Item | CAMI Newborn Dummy Mark I | CAMI Infant Dummy Mark II |
| Model | (newborn) | (6 months old) |
| Weight | 7.5 lb or 3.4 kg | 17.5 lb or 7.94 kg |
| Head Circumference | 13.80 in or 35.05 cm | 17.00 in or 43.18 cm |
| Chest Circumference | 13.70 in or 34.80 cm | / |
| Waist | / | 17.50 in or 44.45 cm |
| Standing Height |
19.85 in or 50.42 cm | 26.25 in or 66.68 cm |
| Seated Height | / | 17.50 in or 44.45 cm |
| Packaging | Aluminum box | |
| Dimension | 70*31*17 cm | |
Standards |
ASTM F2088,ASTM F2167,ASTM F833 |
ASTM F2012,ASTM F404 ASTM F2088,ASTM F2167 ASTM F833-2013b,ASTM F2194-13a |
| INCLUDE | Certificate | Certificate |
