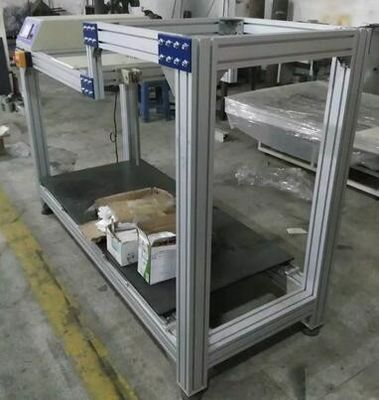

Test Speed adjusted Lab Testing Equipment Children Bicycle Brake Shoes Tester

Test Speed adjusted Lab Testing Equipment Children Bicycle Brake Shoes Tester

  • Test Speed adjusted Lab Testing Equipment Children Bicycle Brake Shoes Tester
Test Speed adjusted Lab Testing Equipment Children Bicycle Brake Shoes Tester
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-BC003
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Children Bicycle Brake Shoes Tester Saddle Load Capacity: 30 Kg Accumulation
Brake Handle Loading Force: The Loading Force Of 130N/brake Handle Test Distance: 75mm
Stroke: 250mm Test Speed: 10 R/min Can Be Adjusted
High Light:

abrasion testing equipment

,

brake testing equipment

Lab Testing Equipment Children Bicycle Brake Shoes Testing Equipment



Applications:



The machine is suitable for the testing of children bicycle brake shoes and brake chamber.



Standards



ISO 8098

GB 8098



Parameters



 Working position  1
 Sample  finished children bicycle
 Saddle load capacity  30 kg accumulation
 Brake handle loading force  the loading force of 130N/brake handle
 Test distance  75 mm or more
 Test speed  10 r/min can be adjusted
 Counter  0 ~ 999 999 times can be set
 Test times  5 times
 Controller  PLC + touch screen control
 Air source  7 KGF/cm ^ 2
 Power supply  1∮ AC 220V 50HZ 3A
 Dimension (WxDxH)  200x85x135cm
 Weight (about)  ≈80 kg



Applications Industry

All kinds of brake shoes can be tested on the Children Bicycle Brake Shoes Tester
