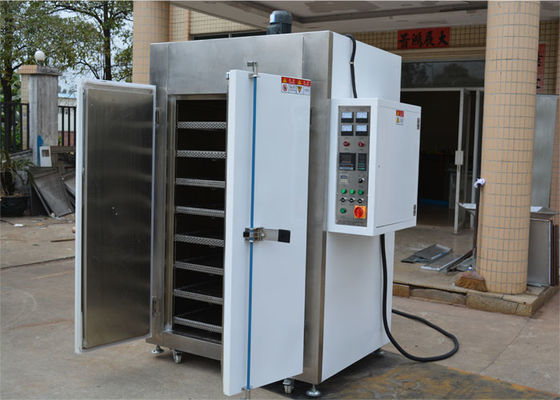

Energy Conservation Lab Testing Equipment 800L High Temperature Hot Air Oven

Energy Conservation Lab Testing Equipment 800L High Temperature Hot Air Oven

  • Energy Conservation Lab Testing Equipment 800L High Temperature Hot Air Oven
Energy Conservation Lab Testing Equipment 800L High Temperature Hot Air Oven
Product Details:
Place of Origin: CN
Brand Name: SKYLINE
Certification: CE
Model Number: SL-F017
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Plywood case
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: High Temperature Aging Oven View Windown: Glass Two View Windows With Lights
Tray: 4 Pcs Stainless Steel Trays Dimension: W800mm × D800mm × H1200mm;
Temperature Range: RT-300 °C Heating Power: About 4.5KW
High Light:

abrasion testing equipment


physical testing equipment

Lab Testing Equipment 800L High Temperature Hot Air Aging Oven


Product description

Large air volume hot air circulation in the box, high thermal efficiency, energy conservation. Applicable to a wide range, can be used for drying a variety of materials, is a common drying equipment. The instrument shell uses high quality steel plate, the surface high temperature spray. The studio uses high-quality stainless steel mirror panel, indoor with two partitions, height adjustable. Modeling beautiful and innovative. The instrument uses microcomputer intelligent control, over-temperature alarm, overheating protection, time setting, binocular digital display, temperature control linearity, accuracy ± 1 ℃, fluctuation ± 1 ℃, with tracking alarm function. Standby state, the working temperature of the state have a yellow and green lights show. The heat of the electric heater placed inside the bottom of the tank is discharged through the three-sided air duct, and then dried through the centrifugal fan at the bottom to form a reasonable air duct, so that the hot air can be fully convected so that the temperature in the box reaches the maximum temperature The sealed door ensures uniform internal temperature distribution. The best condition of the box within the uniformity of up to ± 1 ℃, with Japan, Germany and other places comparable to the oven



1 Internal dimensions: W800mm × D800mm × H1200mm;
2 Power supply voltage: 220V 50 / 60Hz;
3 Heating power: about 4.5KW
4 The controller is located above the machine.
5 Within the material for the 1.2MMSUS304 mirror stainless steel, clean and smooth cavity, easy to clean and leave no residue, strong corrosion resistance. All internal materials use low-pollution materials, all the barrel with no trace argon arc welding.
3.6 The material is SECC steel plate, the thickness of 1.2mm high quality steel paint treatment.
3.7 insulation material for the import of polyurethane foam, heat insulation is good, to ensure maximum temperature insulation, anti-dense material for the high temperature silicone, can be a long time to withstand more than 300 degrees of high temperature.


Temperature controll system

1 Temperature range of room temperature to 100 ℃ within the adjustable control.
2 Accuracy: control accuracy ± 0.5 ℃,
3 Distribution temperature ± 2.0 ℃ (no load)
4 Heating rate: RT ~ 100 ℃ (about 10-20 minutes or so)
5 Temperature control for the PID microcomputer automatic calculation PV / SV at the same time display, the machine temperature can be allowed within the scope of the individual free to set the required temperature, and PID parameters through the table set to ensure the accuracy of its temperature control, Can be carried out by the system itself with the self-calculation of the appropriate temperature control parameters.
6 Temperature input CA (K) TYPE output is 12V.
7 Current controller for the SSR no contact Relay, to maintain high stability of the current.
8 Heating material for the honeycomb stainless steel heating pipe, no pollution and long service life.
