|Skyline:||Clothing Metal Detector Machine||Height Of Inspection Window:||100-125-150-200 Mm|
|Diameter Of Steel Ball(mm):||Φ1.0-2.010 Levels Adjustable||Resolution:||0.01 MT =0.1 G|
abrasion testing equipment,
brake testing equipment

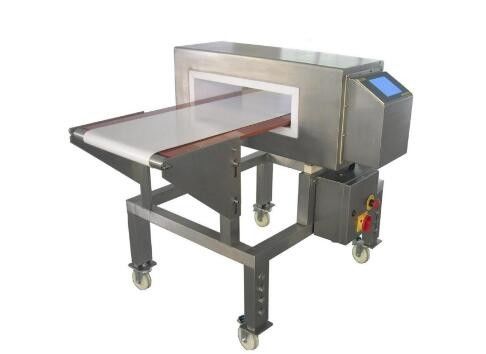

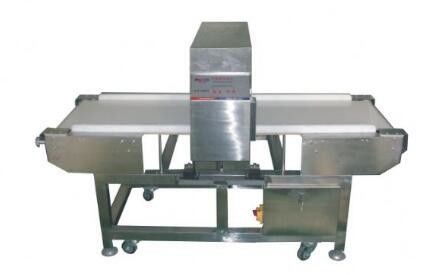

Lab Testing Equipment Digital Metal Detector Machine for Food Industrial
Food, testing, food, testing, food, clothing, footwear, chemical, leather, knitting and other industries to detect products or raw materials in the production process mixed with the process Metal impurities. Such as: iron and non-ferromagnetic metal objects (iron, copper, aluminum, stainless steel and other non-ferrous metals can be detected), improve product safety factor, enhance product quality.
1. The core part of the use of leading digital technology and imported chips carefully developed, the detection coil inside the use of potting a molding, with high detection accuracy, stable performance, strong resistance to external interference and so on.
2. According to product characteristics using a variety of frequency production, and product testing data storage function, can store more than 100 kinds of product testing data, for a wide range.
3. The use of intelligent identification technology, with self-learning and memory functions, can automatically understand and memorize product features, effectively eliminate the "product effects" generated interference.
4. Simple and friendly interface, the use of dialogue LCD screen, through a simple key interface to quickly and easily set the parameters; can detect different products containing different signals (features) of a variety of products, a set can guarantee very high The detection accuracy, without re-adjustment, set the program.
5. Modular component replacement, easy maintenance.
6. Complies with HACCP, GMP, FDA requirements.
7. Waterproof and waterproof design, dust and waterproof function IP-66 / IP-65 international certification, anti-vibration and absorption of noise, can adapt to harsh working environment.
8. According to the user needs to use a variety of removal devices (such as flap, air blowing, putter, etc.) and lightweight, large packaging and load-bearing body design.
Normal height of inspection windowmm:100-125-150-200
Normal width of inspection windowmm :600
Sensitivity-Diameter of steel ball(mm) :Φ1.0-2.010 levels adjustable
Alarm:Audible and visual automatic stop
Electrical source: 220V 50Hz
|Machine specification||Normal machine||Customized width|
|(mm)Detection Width||400||400 customized|
|Alarm and rejector system||Automatic stop by alarm and sound or push rod or falling drop|
|Machine structure||Full structure takes of stainless 304|
|Machine size (mm)||L1520mm×W830mm×H1000mm if customized it will according to customized size|
|Machine weight||Around 250KG if customized the weight will different|
|Voltage and power||220V 50Hz 90W|
|Load ability||5-25KG conveyor belt running speed :25-30m/min or customized|
|Height from the earth||650mm±50mm can customized|
|Note :Normal size machine have stocks. Unnormal size machine have to customized|
