Name: EN 1335-3 Office Furniture Testing Equipment For Chair Armrest Pull Resistance Ability
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T01
Price: 4,500.00 USD
Availability: InStock

Home Products Furniture Testing Equipment

EN 1335-3 Office Furniture Testing Equipment For Chair Armrest Pull Resistance Ability

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration certificate
Model Number:	SL-T01

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	35 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Chair Armrest Testing Machine	Armrest Height:	650-780mm
Standard:	ANSI/BIFMA X5.1-2011 11.4 Front Corner Load-Ease Test-Cyclic–Off-center	Brand:	SKYLINE
Parallel Force:	100-200lb	Warranty:	18 Months
Highlight:	EN 1335-3 Office Chair Testing , Armrest Pull Resistance Office Chair Testing

EN 1335-3 Office Chair Testing Machine For Chair Armrest Pull Resistance Ability

Use

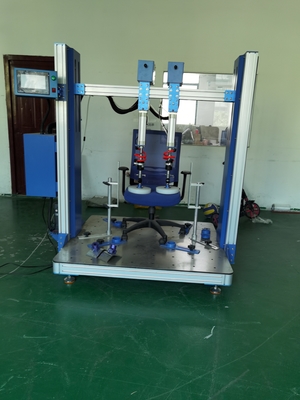

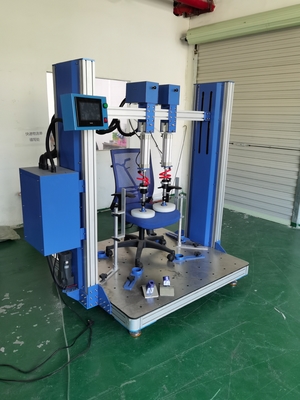

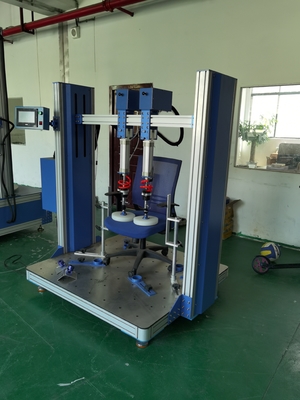

Chair Armrest Testing Machine is used to evaluate the pull-resistance ability of the armrest at parallel direction, to determine its fatigue life under parallel strength. Fix the caster, set the time, and pulling strength and time for automatically reposition.

Specifications

Armrest Height	650-780mm or specified
Timer LCD	0.01sec-99.9sec, 1sec-99 minute 99 second
Machine Size	12005001000mm
Parallel Force	100-200lb
Force Stroke	0-24 inch or specified
Counter LCD	0-999,999 times
Weight	250kg
Power	1 £, AC220V, 3A

Standards

EN1728
EN1335-3 2009 5.7
ANSI/BIFMA X5.1-2017 10.4 Front Corner Load-Ease Test - Cyclic - Off - center
ANSI/BIFMA X5.1-2011 11.4 Front Corner Load-Ease Test-Cyclic–Off-center
ANSI/BIFMA X5.1-2011 20 Footrest Durability Test-Vertical-Cyclic
ANSI/BIFMA X5.1-2011 21 Arm Durability Test - Cyclic

EN 1335-3 Office Furniture Testing Equipment For Chair Armrest Pull Resistance Ability 0
